category:
Piping Systems
diameter:
4
height:
5.43 "
length:
4.37 "
manufacturer:
B&K Products
mpn:
511-300BC
subcategory:
Reducing
upc:
032888361003
weight:
5.4460 lbs
width:
5.43 "
Product Description

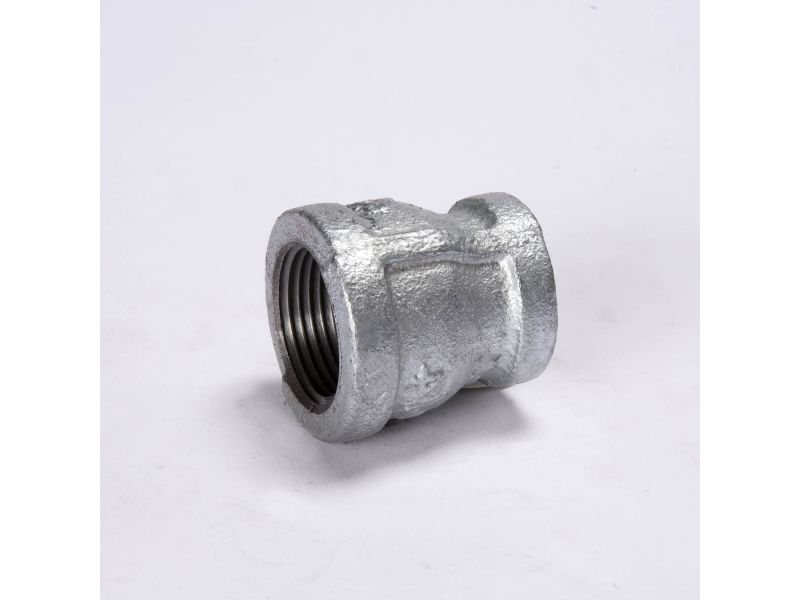

B&K Products - 511-300BC The Reducing Coupling allows you to connect two male-ended pipes of differing diameters. This fitting’s galvanization provides a layer of rust-protectant, helping to ensure a long and durable product life. General uses for this product are for transporting potable water, compressed air, drainage or creating your own DIY projects.
Features- Used for hot and cold water systems, refrigeration, sprinklers, compressed air, gasoline, diesel, alcohol, and some other applications where conducted fluid needs inner rust-proof protection
- Galvanized malleable iron construction with zinc coating
- 150-lb class malleable fittings
- This fitting works up to 500 PSI at 150°F
- Relative softness of metal helps provide a sure seal
- Threaded ends comply with ANSI/ASME B1.20.1 standards
Additional Information
Inlet Diameter (in) 4
Inlet Connection FIP
Outlet Diameter (in) 3
Outlet Connection FIP
Product Length (in) 4.37
Product Height (in) 5.43
Product Width (in) 5.43
Product Weight (lbs) 5.4460
Working Pressure (PSI) 232
Maximum Pressure (PSI) 300
Minimum Temperature (ºF) -20
Working Temperature (ºF) 77
Maximum Temperature (ºF) 347
Unit of Measure EA
Prop65 ID Lead
Warranty Code 1-year limited warranty
Product Type Reducing Couplings
Product Material Malleable Iron
Standards NSF/ANSI 61,HHXX,FM1920,NSF/ANSI 372,AB 1953
