B&K Products

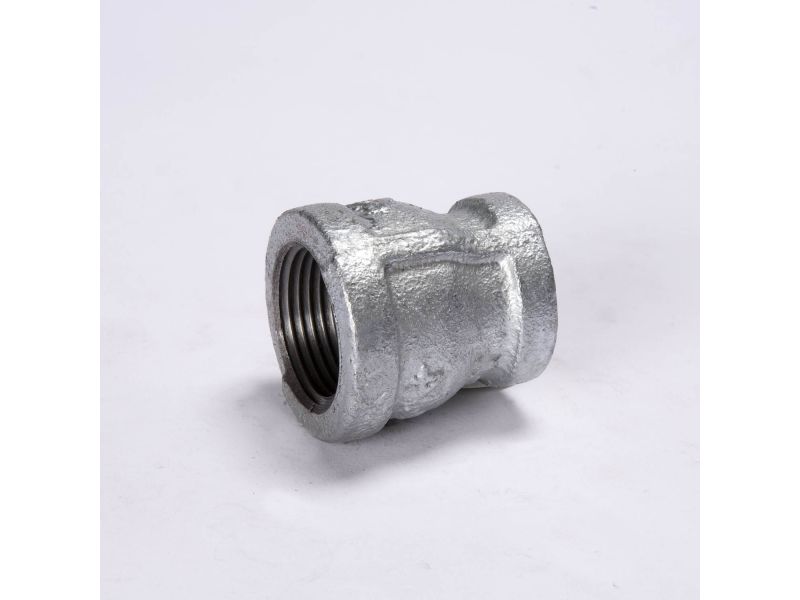

B&K Products 511-308Bc 3 X 2 Reducing Coupling

B&K Products 511-308Bc 3 X 2 Reducing Coupling

Back Order

Get it by Sat, May 24 - Thu, May 29

SKU kpi141-511-308BC

0
(0 rating)
$23.33 USD
$23.33 USD
Sale Sold out
Shipping calculated at checkout.
 More payment options
View full details
  • 30-day returns
  • Fast shipping
  • Secure payments
  • Over 300,000 products
category: Piping Systems
diameter: 3
height: 4.29 "
length: 3.70 "
manufacturer: B&K Products
mpn: 511-308BC
subcategory: Reducing
upc: 032888360990
weight: 2.7830 lbs
width: 4.29 "

Product Description

B&K Products - 511-308BC The Reducing Coupling allows you to connect two male-ended pipes of differing diameters. This fitting’s galvanization provides a layer of rust-protectant, helping to ensure a long and durable product life. General uses for this product are for transporting potable water, compressed air, drainage or creating your own DIY projects.

Features
  • Used for hot and cold water systems, refrigeration, sprinklers, compressed air, gasoline, diesel, alcohol, and some other applications where conducted fluid needs inner rust-proof protection
  • Galvanized malleable iron construction with zinc coating
  • 150-lb class malleable fittings
  • This fitting works up to 500 PSI at 150°F
  • Relative softness of metal helps provide a sure seal
  • Threaded ends comply with ANSI/ASME B1.20.1 standards

Additional Information

Inlet Diameter (in) 3
Inlet Connection FIP
Outlet Diameter (in) 2
Outlet Connection FIP
Product Length (in) 3.70
Product Height (in) 4.29
Product Width (in) 4.29
Product Weight (lbs) 2.7830
Working Pressure (PSI) 232
Maximum Pressure (PSI) 300
Minimum Temperature (ºF) -20
Working Temperature (ºF) 77
Maximum Temperature (ºF) 347
Unit of Measure EA
Prop65 ID Lead
Warranty Code 1-year limited warranty
Product Type Reducing Couplings
Product Material Malleable Iron
Standards NSF/ANSI 61,HHXX,FM1920,NSF/ANSI 372,AB 1953
