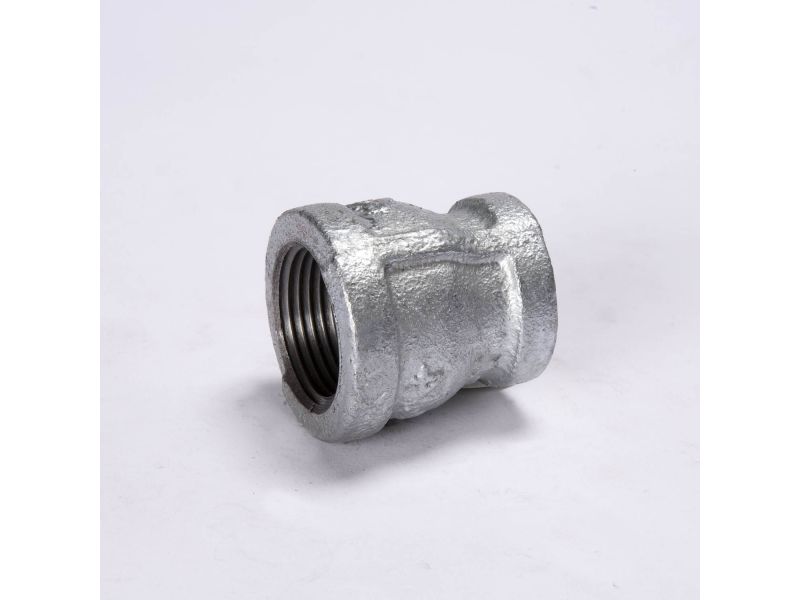

B&K Products 511-363Hc 1-1/4 X 1/2 Reducing Coupling

B&K Products 511-363Hc 1-1/4 X 1/2 Reducing Coupling

Dropship

Get it by Sat, Jun 07 - Thu, Jun 12

SKU kpi141-511-363HC

0
(0 rating)
$4.23 USD
$4.23 USD
Sale Sold out
Shipping calculated at checkout.
 More payment options
View full details
  • 30-day returns
  • Fast shipping
  • Secure payments
  • Over 300,000 products
category: Piping Systems
diameter: 1-1/4
height: 2.17 "
length: 2.05 "
manufacturer: B&K Products
mpn: 511-363HC
subcategory: Reducing
upc: 032888994201
weight: 0.4940 lbs
width: 2.17 "

Product Description

B&K Products - 511-363HC The Reducing Coupling allows you to connect two male-ended pipes of differing diameters. This fitting’s galvanization provides a layer of rust-protectant, helping to ensure a long and durable product life. General uses for this product are for transporting potable water, compressed air, drainage or creating your own DIY projects.

Features
  • Used for hot and cold water systems, refrigeration, sprinklers, compressed air, gasoline, diesel, alcohol, and some other applications where conducted fluid needs inner rust-proof protection
  • Galvanized malleable iron construction with zinc coating
  • 150-lb class malleable fittings
  • This fitting works up to 500 PSI at 150°F
  • Relative softness of metal helps provide a sure seal
  • Threaded ends comply with ANSI/ASME B1.20.1 standards

Additional Information

Inlet Diameter (in) 1-1/4
Inlet Connection FIP
Outlet Diameter (in) 1/2
Outlet Connection FIP
Product Length (in) 2.05
Product Height (in) 2.17
Product Width (in) 2.17
Product Weight (lbs) 0.4940
Working Pressure (PSI) 232
Maximum Pressure (PSI) 300
Minimum Temperature (ºF) -20
Working Temperature (ºF) 77
Maximum Temperature (ºF) 347
Unit of Measure EA
Prop65 ID Lead
Warranty Code 1-year limited warranty
Product Type Reducing Couplings
Product Material Malleable Iron
Standards NSF/ANSI 61,HHXX,FM1920,NSF/ANSI 372,AB 1953
