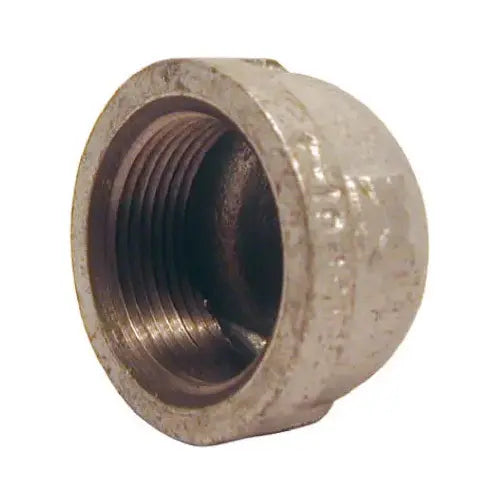

B&K Products - 511-403HN Caps are a great way to secure the end of a piping system. This fitting’s galvanization provides a layer of rust-protectant, helping to ensure a long and durable product life. General uses for this product are for transporting potable water, compressed air, drainage or creating your own DIY projects.
Features- Used for hot and cold water systems, refrigeration, sprinklers, compressed air, gasoline, diesel, alcohol, and some other applications where conducted fluid needs inner rust-proof protection
- Galvanized malleable iron construction with zinc coating
- 150-lb class malleable fittings
- This fitting works up to 500 PSI at 150°F
- Relative softness of metal helps provide a sure seal
- Threaded ends comply with ANSI/ASME B1.20.1 standards
Additional Information
Inlet Diameter (in) 1/2
Inlet Connection FIP
Product Length (in) 1.22
Product Height (in) 0.91
Product Width (in) 1.22
Product Weight (lbs) 0.1130
Working Pressure (PSI) 232
Maximum Pressure (PSI) 300
Minimum Temperature (ºF) -20
Working Temperature (ºF) 77
Maximum Temperature (ºF) 347
Unit of Measure EA
Prop65 ID Lead and Lead Compounds
Warranty Code 1-year limited warranty
Product Type Caps
Product Material Malleable Iron
Standards NSF/ANSI 61,HHXX,FM1920,NSF/ANSI 372,AB 1953
CategoryPiping Systems
Diameter1/2
Height0.91 "
Length1.22 "
ManufacturerB&K Products
Mpn511-403HN
SubcategoryCap
Upc032888405653
Weight0.1130 lbs
Width1.22 "
