category:
Piping Systems
diameter:
3/8
height:
0.39 "
length:
3.46 "
manufacturer:
B&K Products
mpn:
511-602
subcategory:
Floor Flange
upc:
032888369603
weight:
0.5805 lbs
width:
3.46 "
Product Description

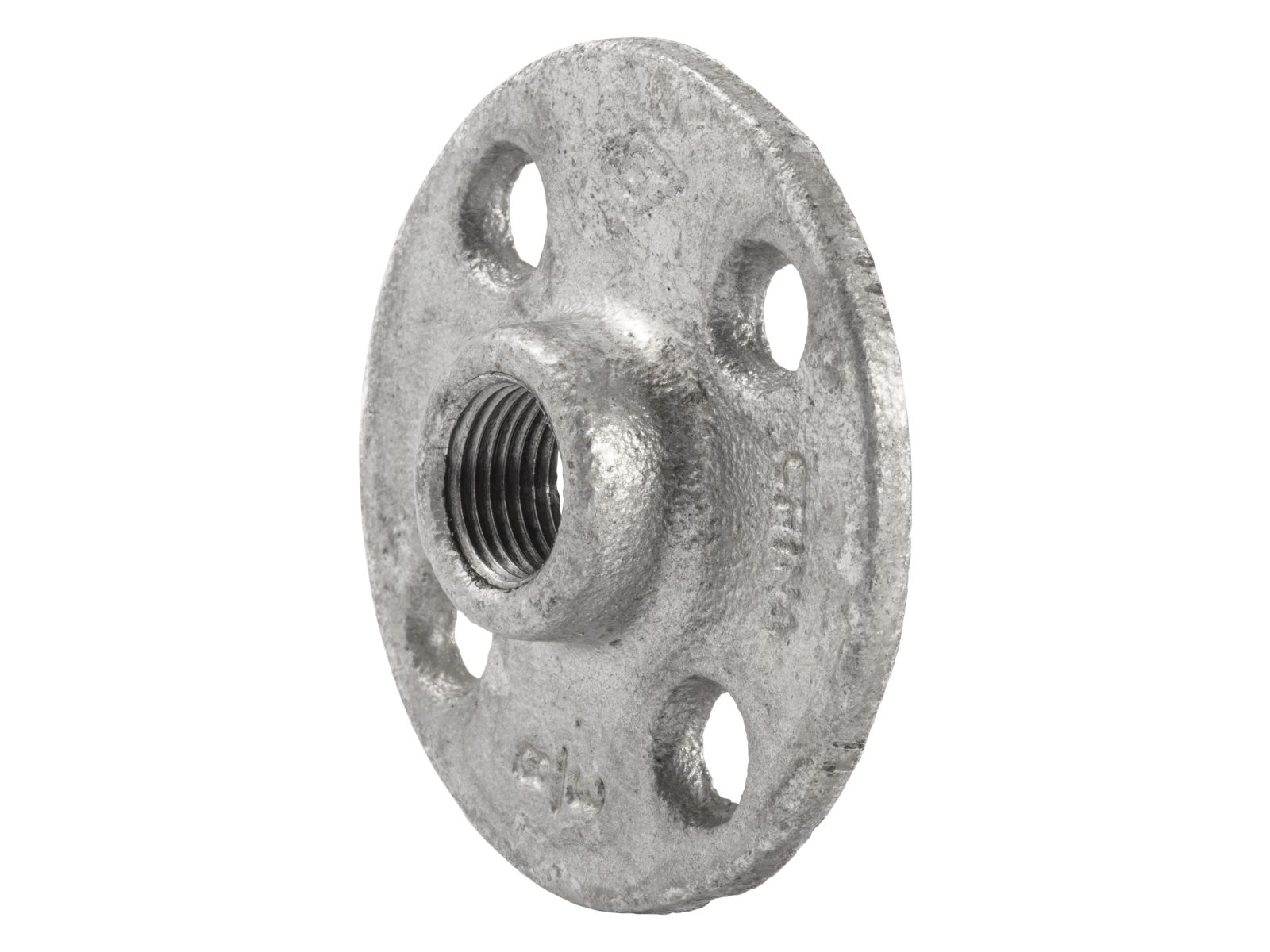

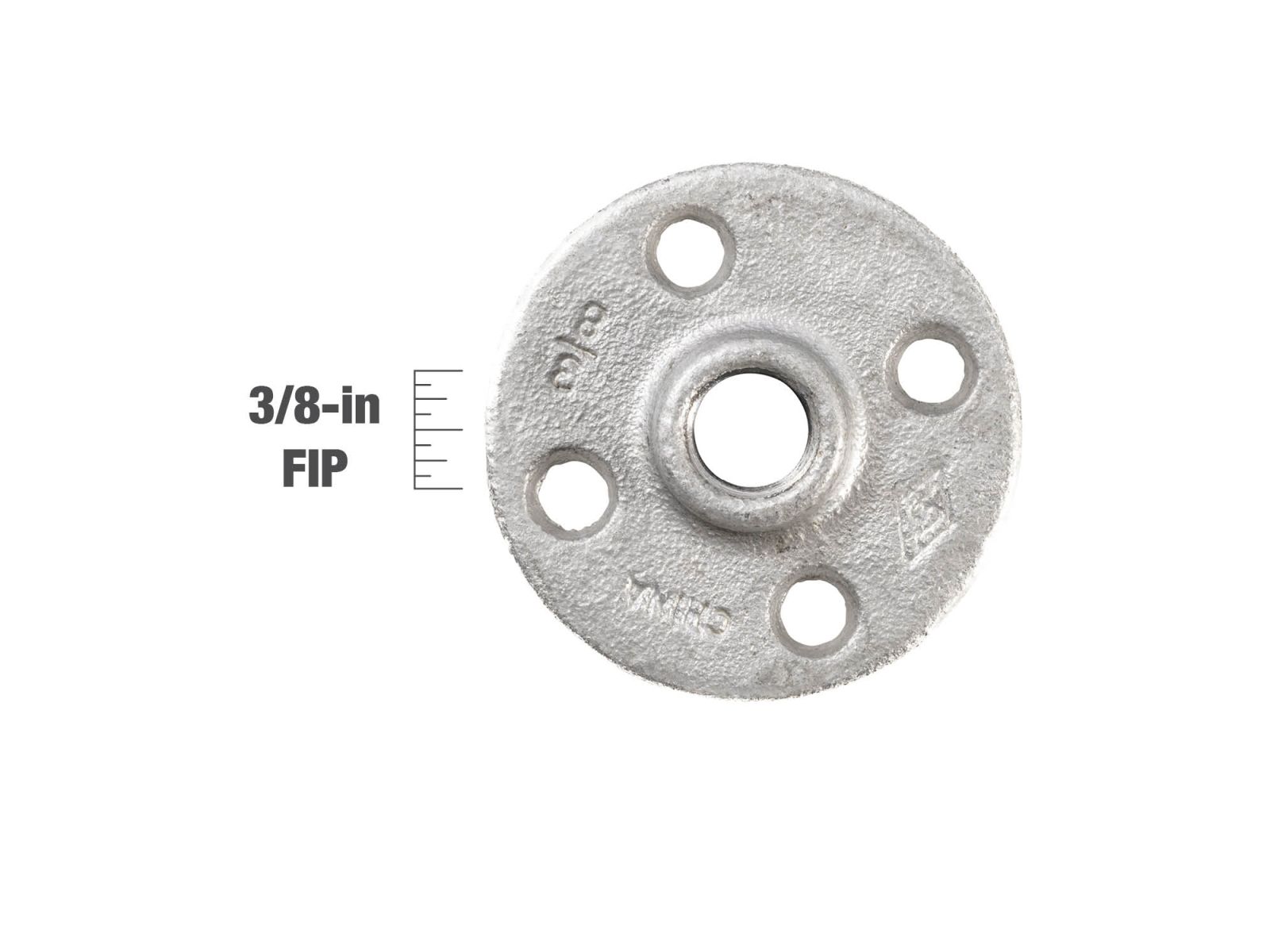

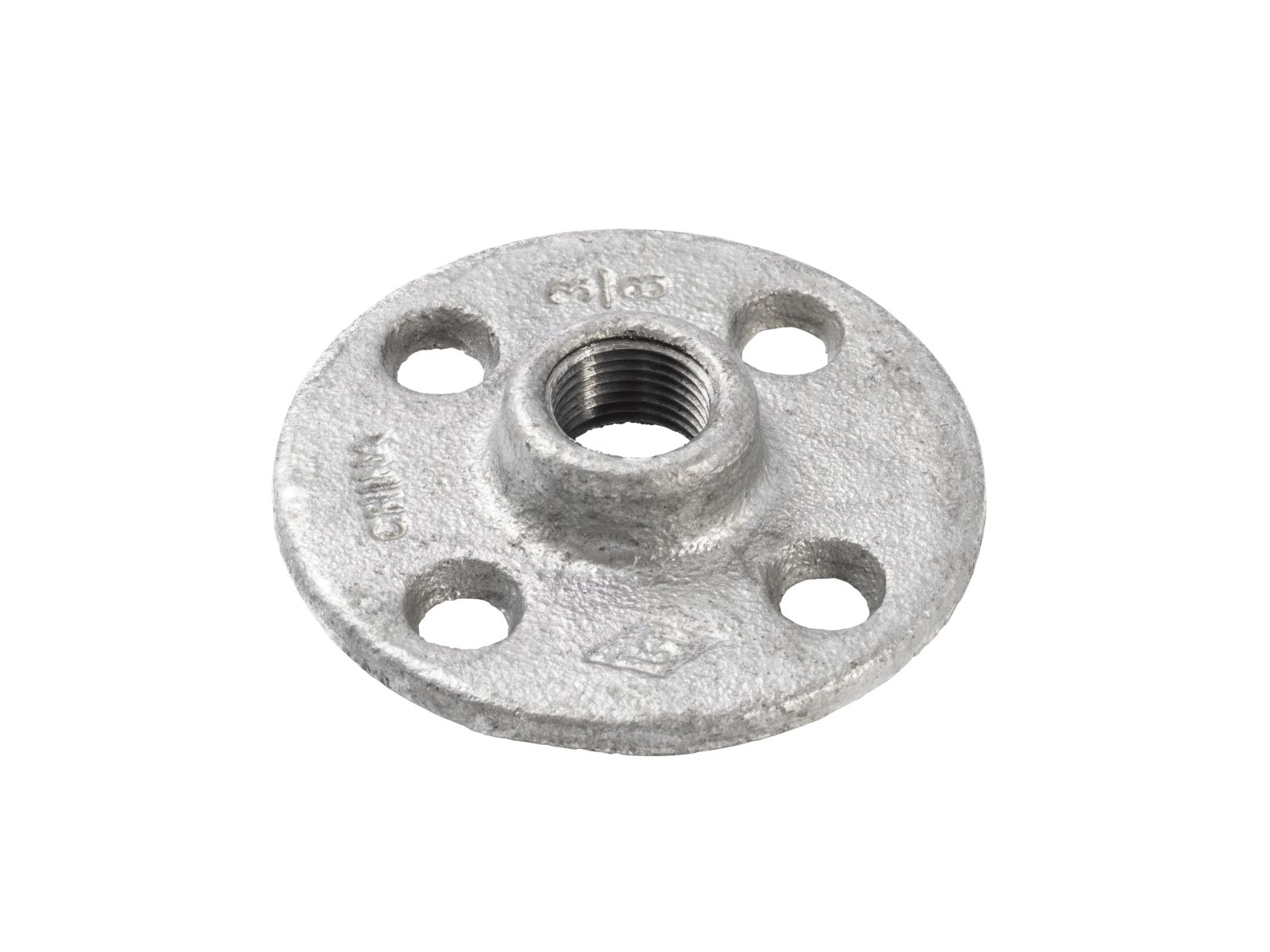

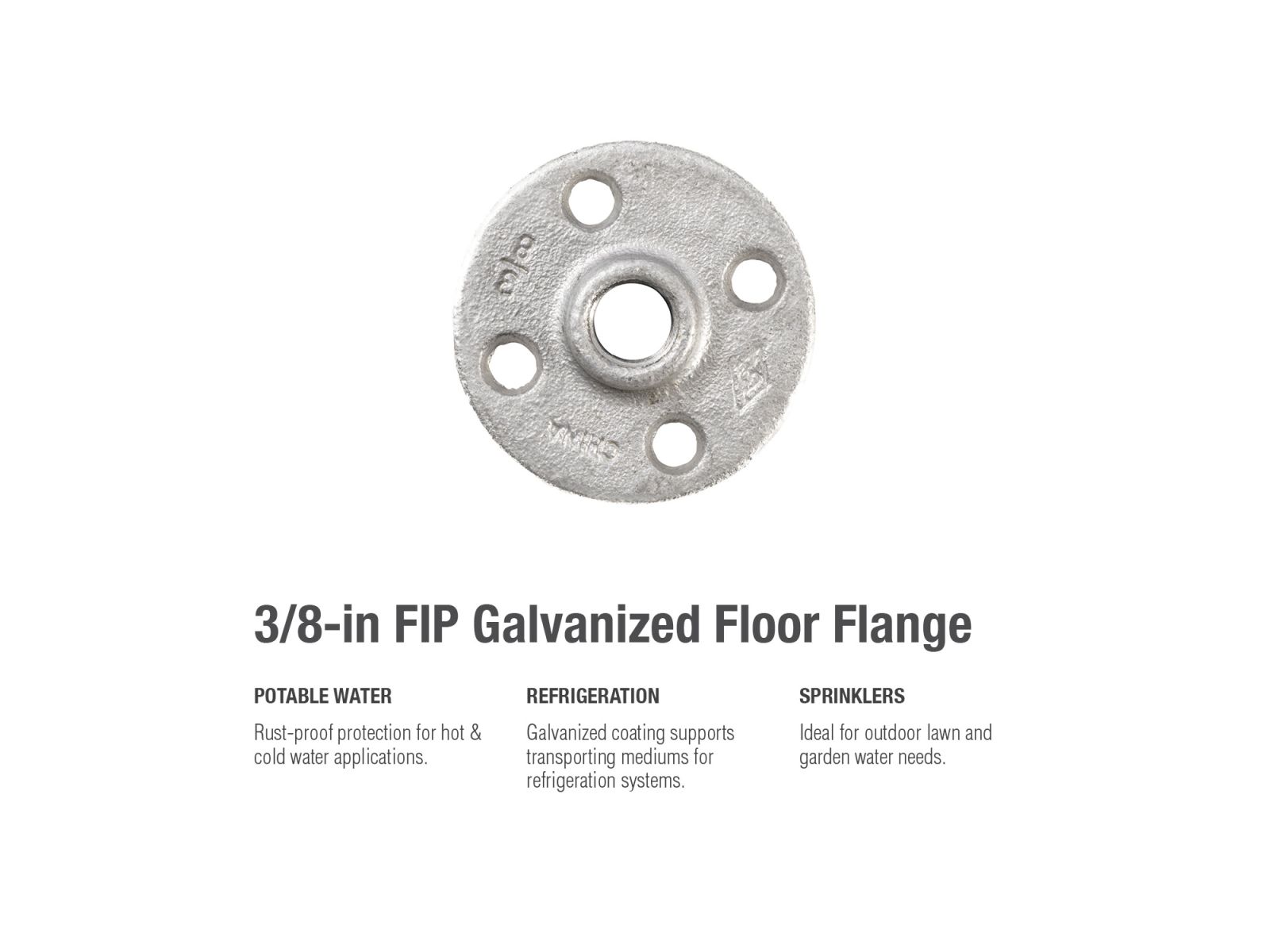

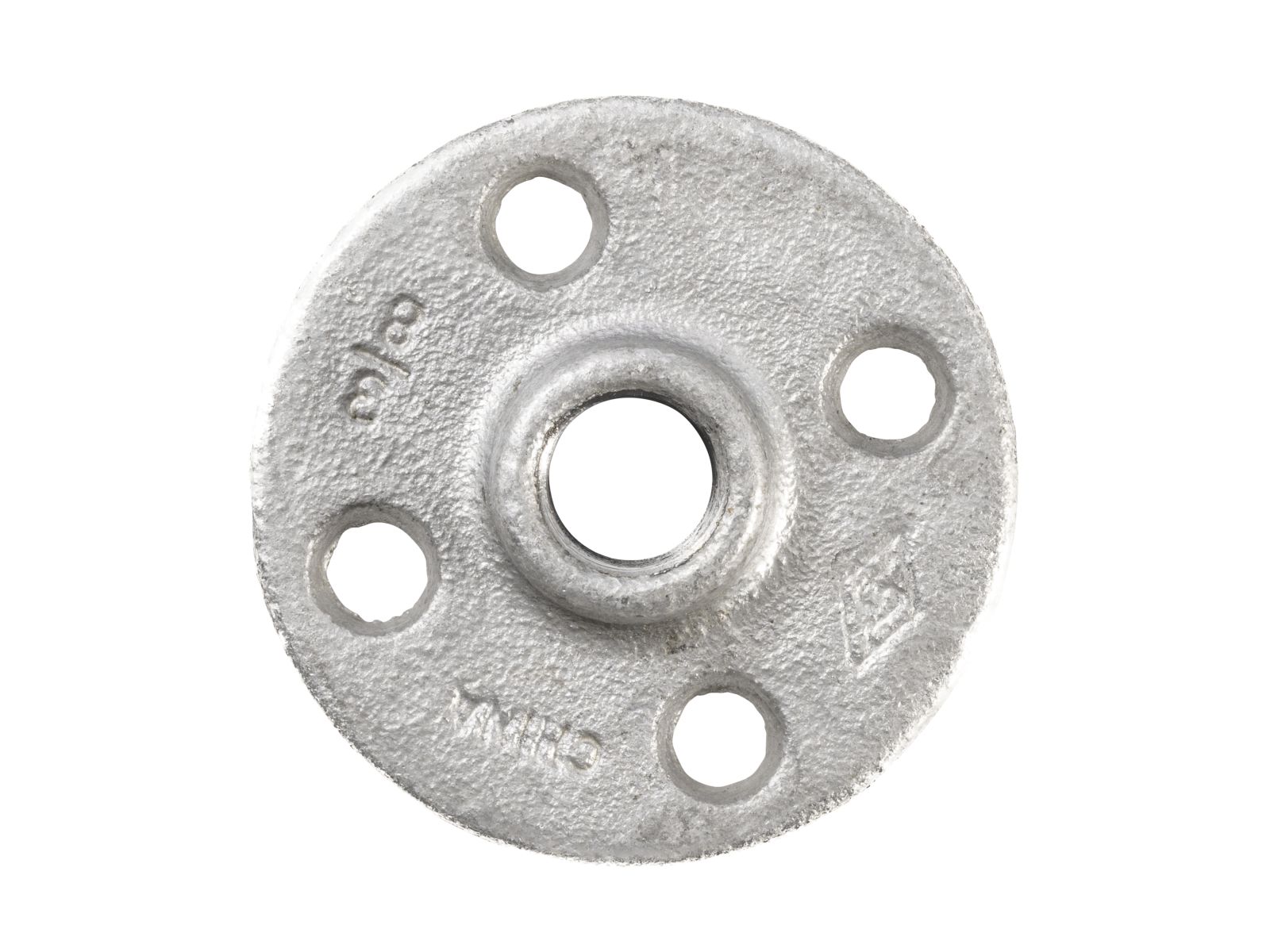

B&K Products - 511-602 Flanges allow for a secure piping connection to either the floor or wall. This fitting’s galvanization provides a layer of rust-protectant, helping to ensure a long and durable product life. General uses for this product are for transporting potable water, compressed air, drainage or creating your own DIY projects.
Features- Used for hot and cold water systems, refrigeration, sprinklers, compressed air, gasoline, diesel, alcohol, and some other applications where conducted fluid needs inner rust-proof protection
- Galvanized malleable iron construction with zinc coating
- 150-lb class malleable fittings
- This fitting works up to 500 PSI at 150°F
- Relative softness of metal helps provide a sure seal
- Threaded ends comply with ANSI/ASME B1.20.1 standards
Additional Information
Inlet Diameter (in) 3/8
Inlet Connection FIP
Product Length (in) 3.46
Product Height (in) 0.39
Product Width (in) 3.46
Product Weight (lbs) 0.5805
Working Pressure (PSI) 0
Maximum Pressure (PSI) 0
Minimum Temperature (ºF) 0
Working Temperature (ºF) 0
Maximum Temperature (ºF) 0
Unit of Measure EA
Prop65 ID Chromium, Lead
Warranty Code 1-year limited warranty
Product Type Floor Flanges
Product Material Malleable Iron
Standards FM 1140,NSF/ANSI 372,NSF/ANSI 61,ASME B16.3
