B&K Products

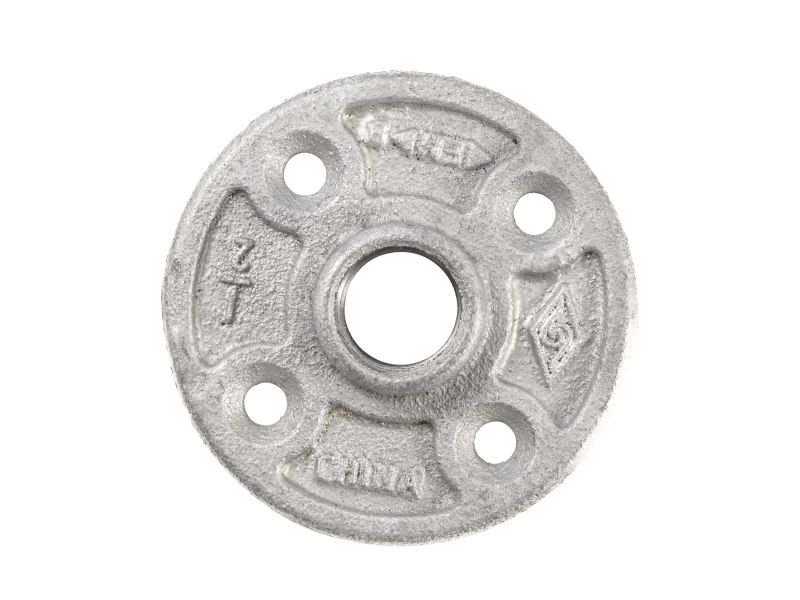

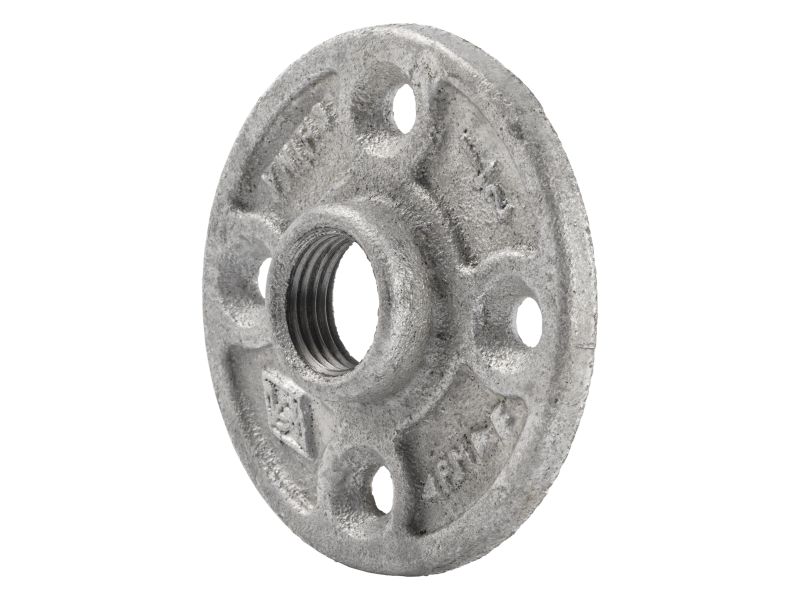

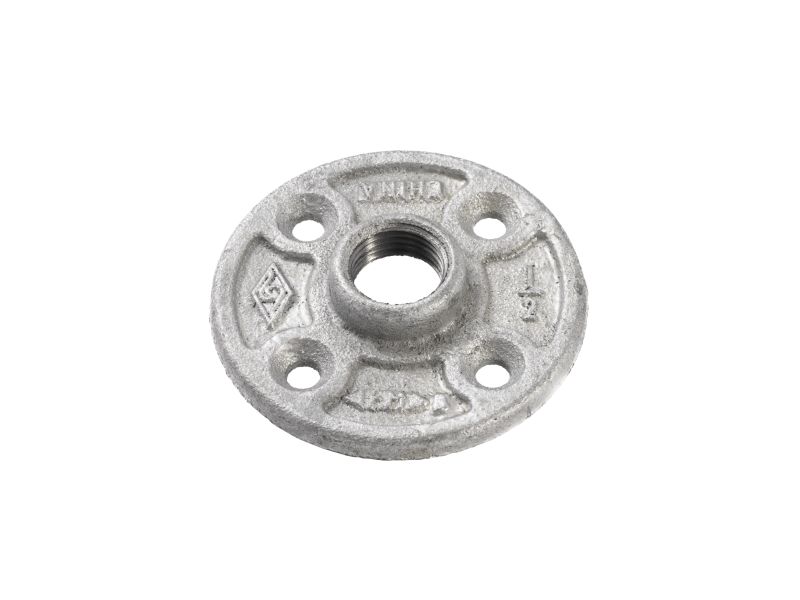

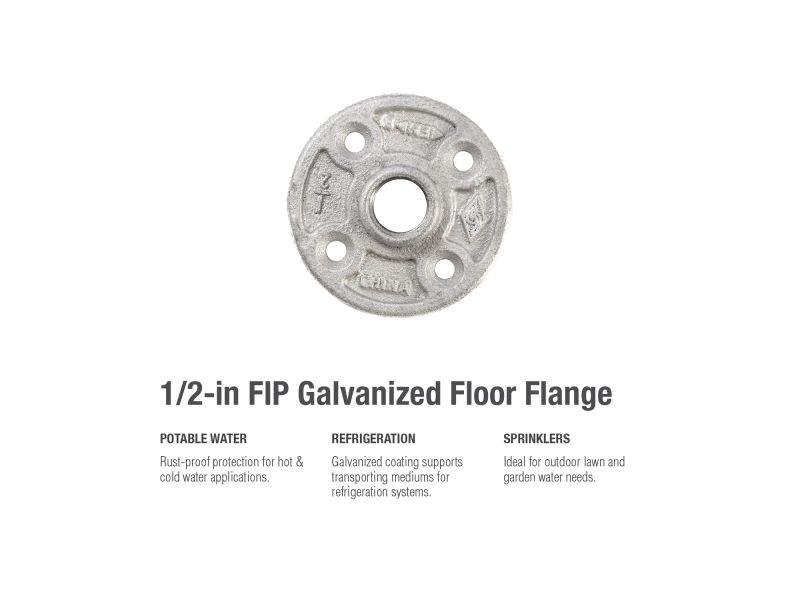

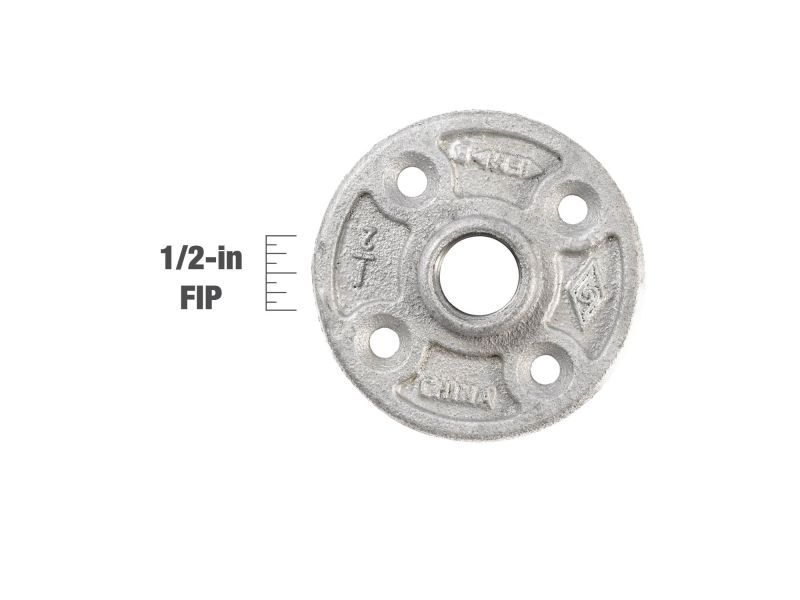

B&K Products 511-603Hn 1/2" Floor Flange

B&K Products 511-603Hn 1/2" Floor Flange

Dropship

Get it by Fri, Jun 27 - Wed, Jul 02

SKU kpi141-511-603HN

0
(0 rating)
$6.23 USD
$6.23 USD
Sale Sold out
Shipping calculated at checkout.
 More payment options
View full details
  • 30-day returns
  • Fast shipping
  • Secure payments
  • Over 300,000 products
category: Piping Systems
diameter: 1/2
height: 0.55 "
length: 3.07 "
manufacturer: B&K Products
mpn: 511-603HN
subcategory: Floor Flange
upc: 032888406063
weight: 0.3080 lbs
width: 3.07 "

Product Description

B&K Products - 511-603HN Flanges allow for a secure piping connection to either the floor or wall. This fitting’s galvanization provides a layer of rust-protectant, helping to ensure a long and durable product life. General uses for this product are for transporting potable water, compressed air, drainage or creating your own DIY projects.

Features
  • Used for hot and cold water systems, refrigeration, sprinklers, compressed air, gasoline, diesel, alcohol, and some other applications where conducted fluid needs inner rust-proof protection
  • Galvanized malleable iron construction with zinc coating
  • 150-lb class malleable fittings
  • This fitting works up to 500 PSI at 150°F
  • Relative softness of metal helps provide a sure seal
  • Threaded ends comply with ANSI/ASME B1.20.1 standards

Additional Information

Inlet Diameter (in) 1/2
Inlet Connection FIP
Product Length (in) 3.07
Product Height (in) 0.55
Product Width (in) 3.07
Product Weight (lbs) 0.3080
Working Pressure (PSI) 0
Maximum Pressure (PSI) 0
Minimum Temperature (ºF) -20
Working Temperature (ºF) 77
Maximum Temperature (ºF) 347
Unit of Measure EA
Prop65 ID Lead
Warranty Code 1-year limited warranty
Product Type Floor Flanges
Product Material Malleable Iron
Standards FM1920,NSF/ANSI 372,AB 1953,NSF/ANSI 61
