category:
Piping Systems
diameter:
3/8
height:
0.79 "
length:
0.83 "
manufacturer:
B&K Products
mpn:
511-921HN
subcategory:
Hex Bushing
upc:
032888405974
weight:
0.0380 lbs
width:
0.71 "
Product Description

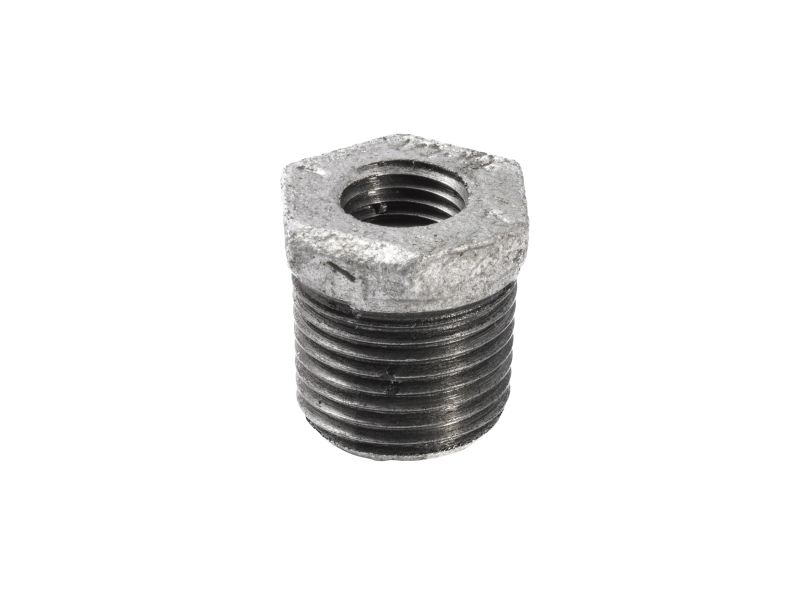

B&K Products - 511-921HN The Hex Bushing allows you to connect two pipes of different sizes and connections. This fitting’s galvanization provides a layer of rust-protectant, helping to ensure a long and durable product life. General uses for this product are for transporting potable water, compressed air, drainage or creating your own DIY projects.
Features- Used for hot and cold water systems, refrigeration, sprinklers, compressed air, gasoline, diesel, alcohol, and some other applications where conducted fluid needs inner rust-proof protection
- Galvanized malleable iron construction with zinc coating
- 150-lb class malleable fittings
- This fitting works up to 500 PSI at 150°F
- Relative softness of metal helps provide a sure seal
- Threaded ends comply with ANSI/ASME B1.20.1 standards
Additional Information
Inlet Diameter (in) 3/8
Inlet Connection MIP
Outlet Diameter (in) 1/4
Outlet Connection FIP
Product Length (in) 0.83
Product Height (in) 0.79
Product Width (in) 0.71
Product Weight (lbs) 0.0380
Working Pressure (PSI) 232
Maximum Pressure (PSI) 300
Minimum Temperature (ºF) -20
Working Temperature (ºF) 77
Maximum Temperature (ºF) 347
Unit of Measure EA
Prop65 ID Lead and Lead Compounds
Warranty Code 1-year limited warranty
Product Type Hex Bushings
Product Material Malleable Iron
Standards NSF/ANSI 61,NSF/ANSI 372,AB 1953
