category:
Piping Systems
diameter:
2
height:
1.26 "
length:
2.72 "
manufacturer:
B&K Products
mpn:
511-986
subcategory:
Hex Bushing
upc:
032888366961
weight:
0.7385 lbs
width:
2.72 "
Product Description

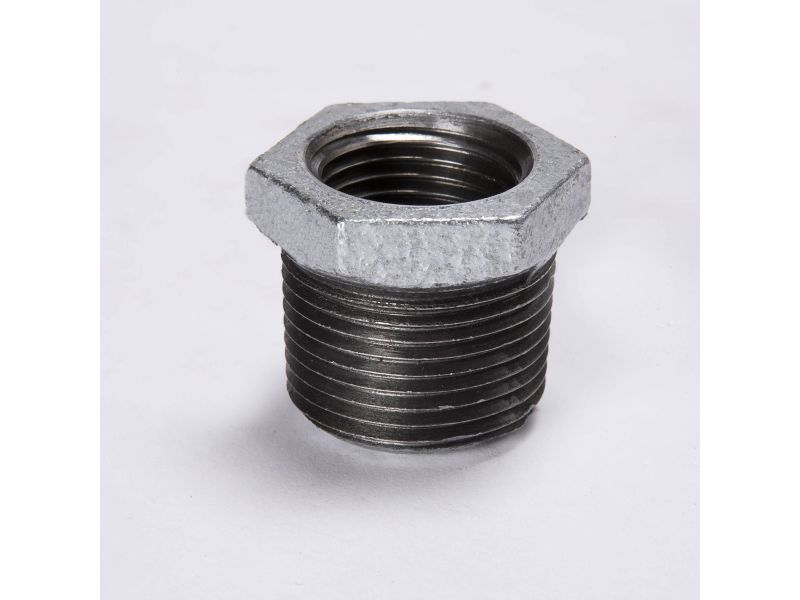

B&K Products - 511-986 The Hex Bushing allows you to connect two pipes of different sizes and connections. This fitting’s galvanization provides a layer of rust-protectant, helping to ensure a long and durable product life. General uses for this product are for transporting potable water, compressed air, drainage or creating your own DIY projects.
Features- Used for hot and cold water systems, refrigeration, sprinklers, compressed air, gasoline, diesel, alcohol, and some other applications where conducted fluid needs inner rust-proof protection
- Galvanized malleable iron construction with zinc coating
- 150-lb class malleable fittings
- This fitting works up to 500 PSI at 150°F
- Relative softness of metal helps provide a sure seal
- Threaded ends comply with ANSI/ASME B1.20.1 standards
Additional Information
Inlet Diameter (in) 2
Inlet Connection MIP
Outlet Diameter (in) 1-1/4
Outlet Connection FIP
Product Length (in) 2.72
Product Height (in) 1.26
Product Width (in) 2.72
Product Weight (lbs) 0.7385
Working Pressure (PSI) 232
Maximum Pressure (PSI) 300
Minimum Temperature (ºF) -20
Working Temperature (ºF) 77
Maximum Temperature (ºF) 347
Unit of Measure EA
Prop65 ID Lead and Lead Compounds
Warranty Code 1-year limited warranty
Product Type Hex Bushings
Product Material Malleable Iron
Standards NSF/ANSI 372,NSF/ANSI 61,ASME B16.3,FM 1920
