B&K Products 520-005Hn 1" Elbow 90

B&K Products 520-005Hn 1" Elbow 90

Back Order

Get it by Thu, May 29 - Tue, Jun 03

SKU kpi141-520-005HN

0
(0 rating)
$1.72 USD
$1.72 USD
Sale Sold out
Shipping calculated at checkout.
 More payment options
View full details
  • 30-day returns
  • Fast shipping
  • Secure payments
  • Over 300,000 products
category: Bath & Kitchen Products
diameter: 1
height: 1.81 "
length: 2.36 "
manufacturer: B&K Products
mpn: 520-005HN
subcategory: Elbow
upc: 032888406162
weight: 0.5720 lbs
width: 2.36 "

Product Description

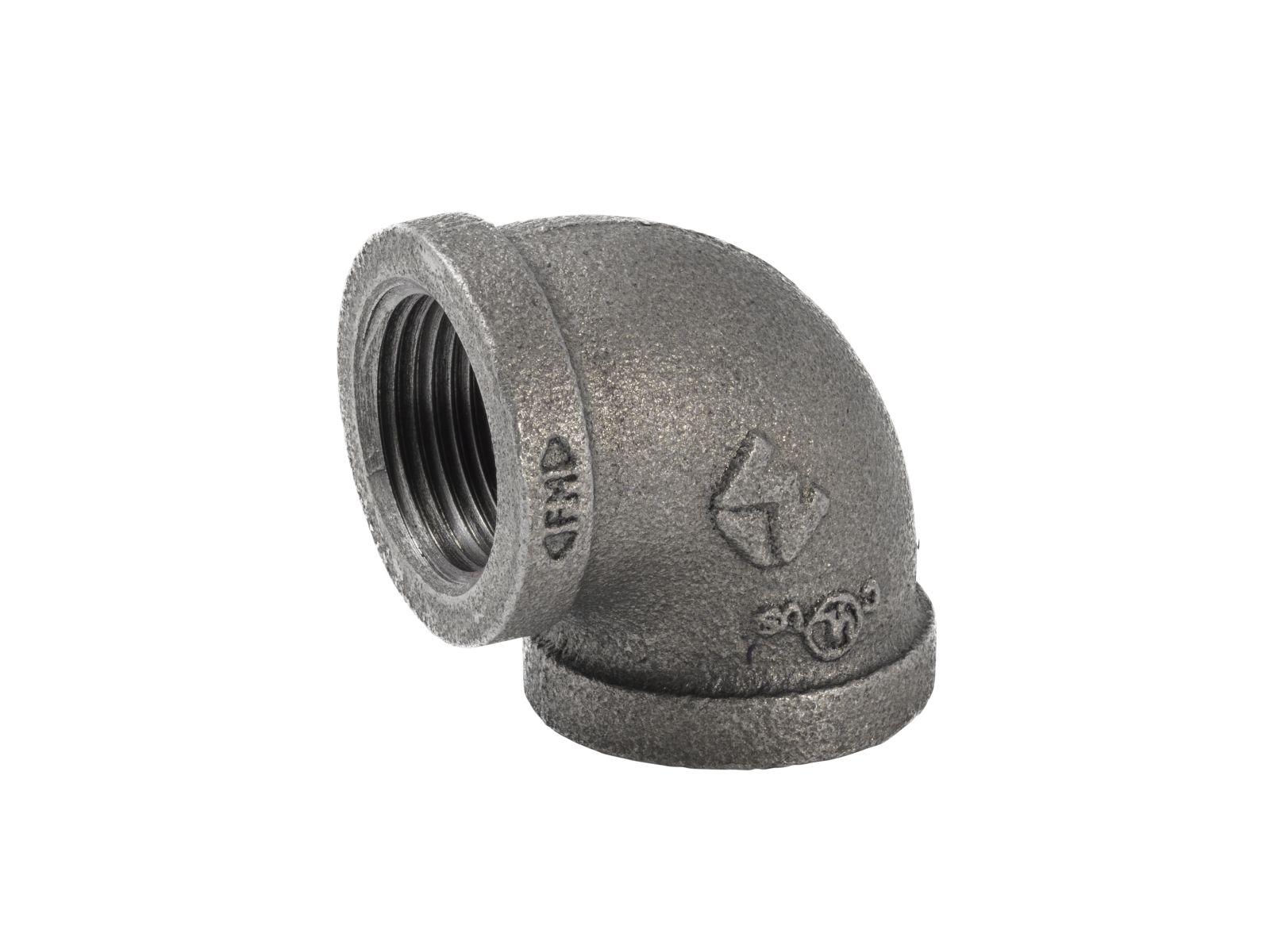

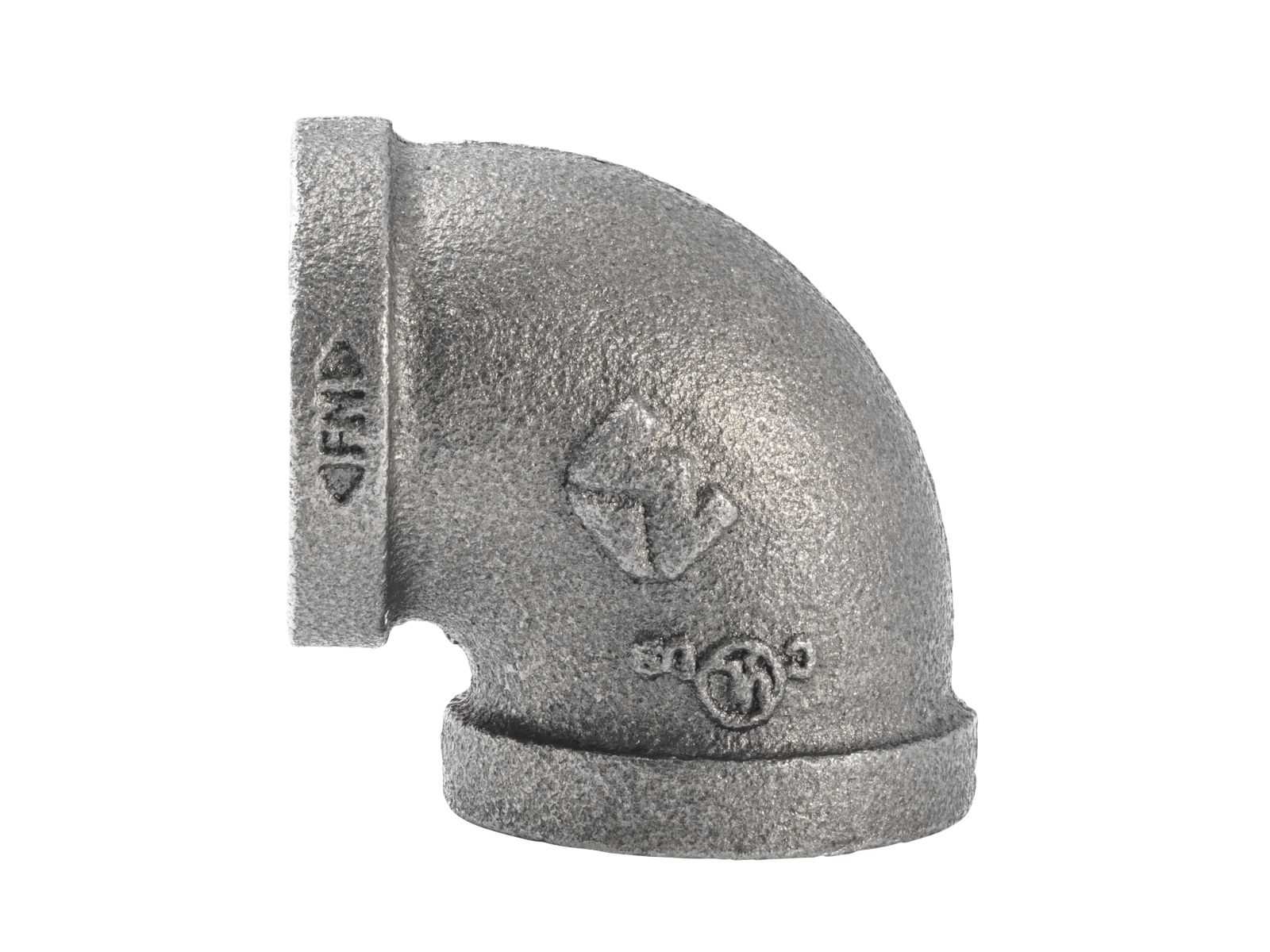

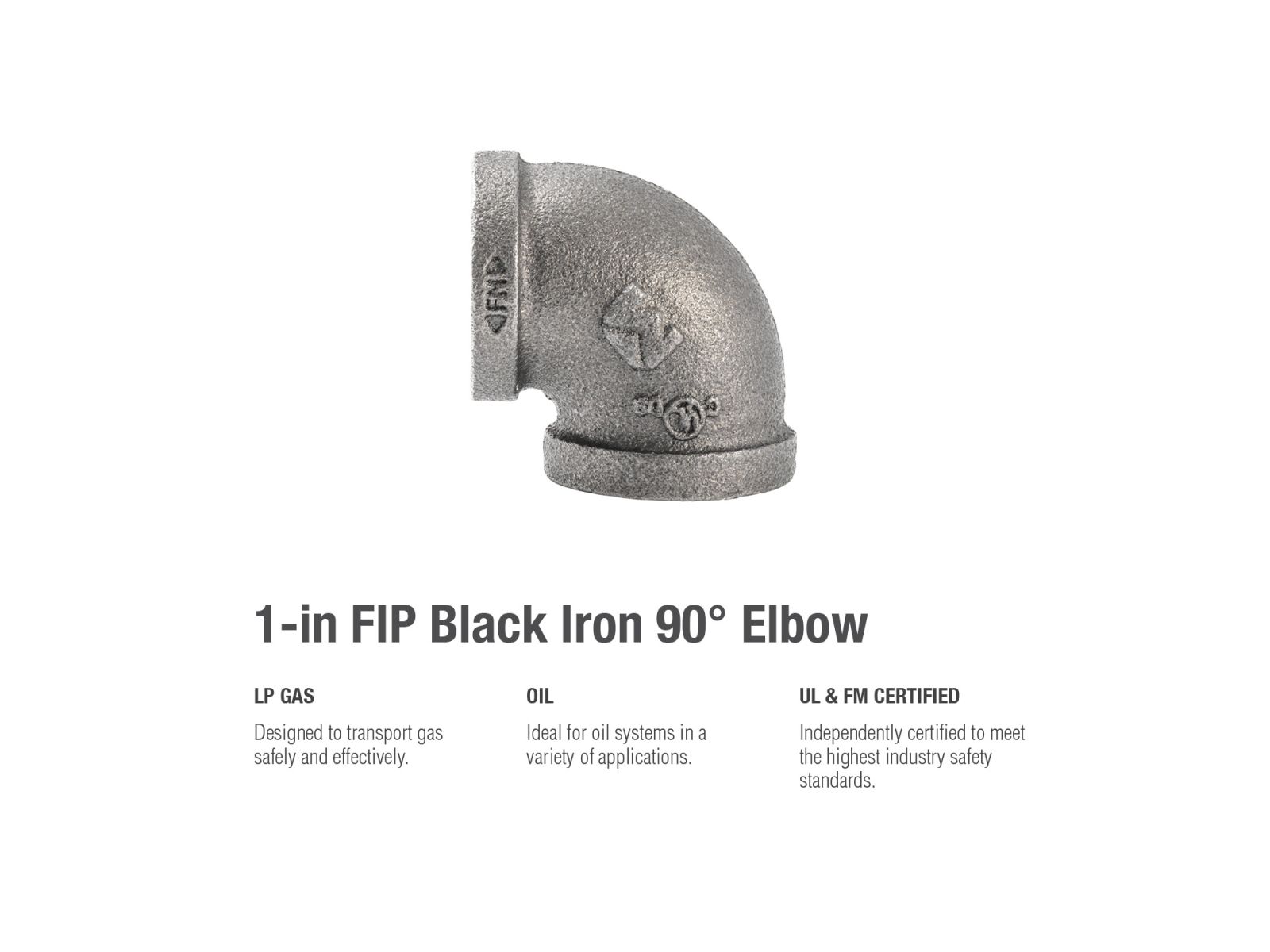

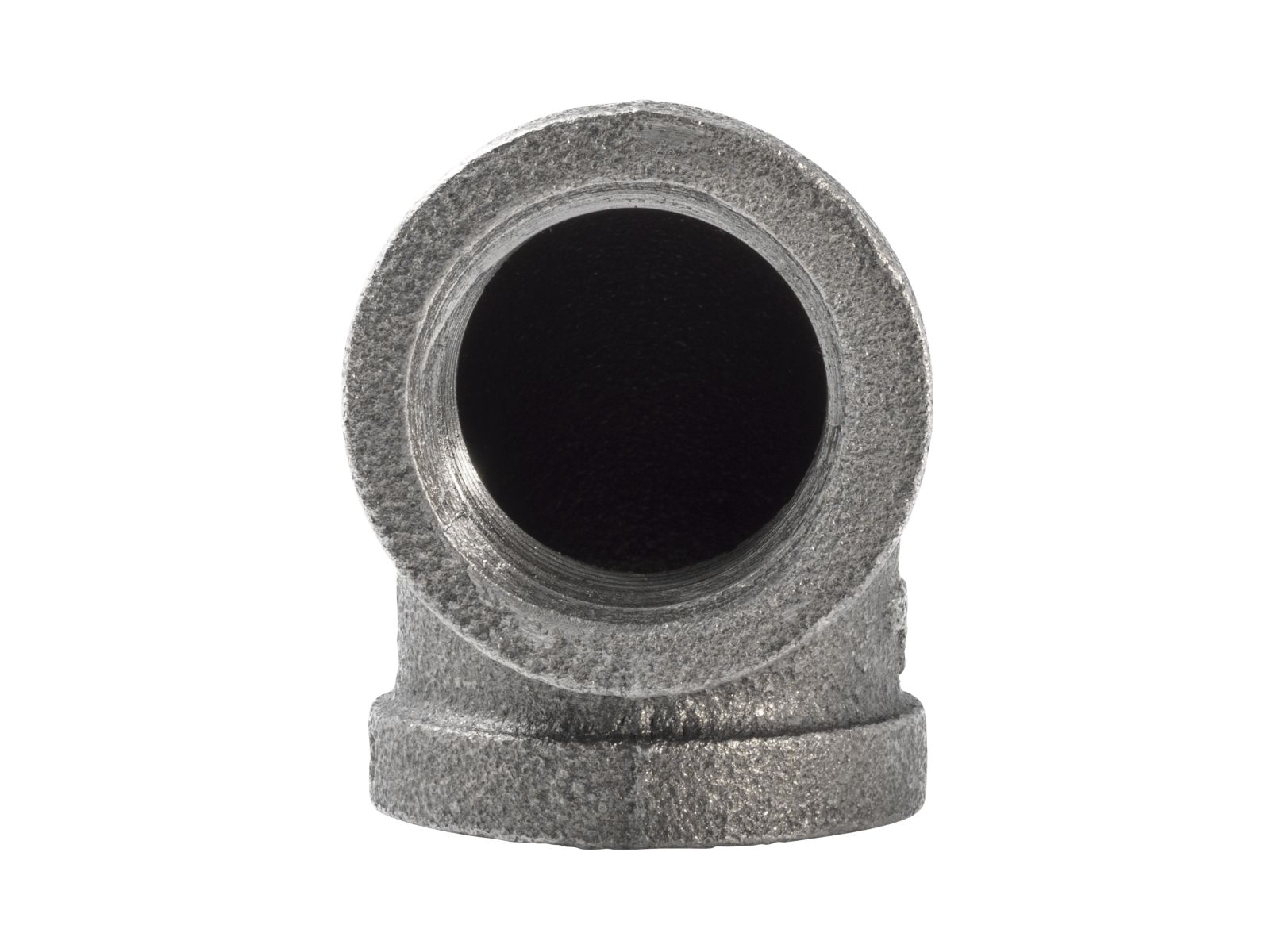

B&K Products - 520-005HN The 90° Elbow allows you to redirect your piping system in a needed direction. General uses for this product are for transporting lubricant, oil, grease, LP gases fuel or to create your own DIY projects. This fitting is not designed for potable water applications.

Features
  • Generally used for lubricant, oil, grease, liquefied petroleum (LP) gas, natural gases (nitrogen, oxygen, etc.), steam and diesel
  • 150-lb class malleable fittings
  • Relative softness of metal helps provide a sure seal
  • This fitting works up to 500 PSI at 150°F
  • Threaded ends comply with ANSI/ASME B1.20.1 standards
  • Meet ASTM and ASME standards

Additional Information

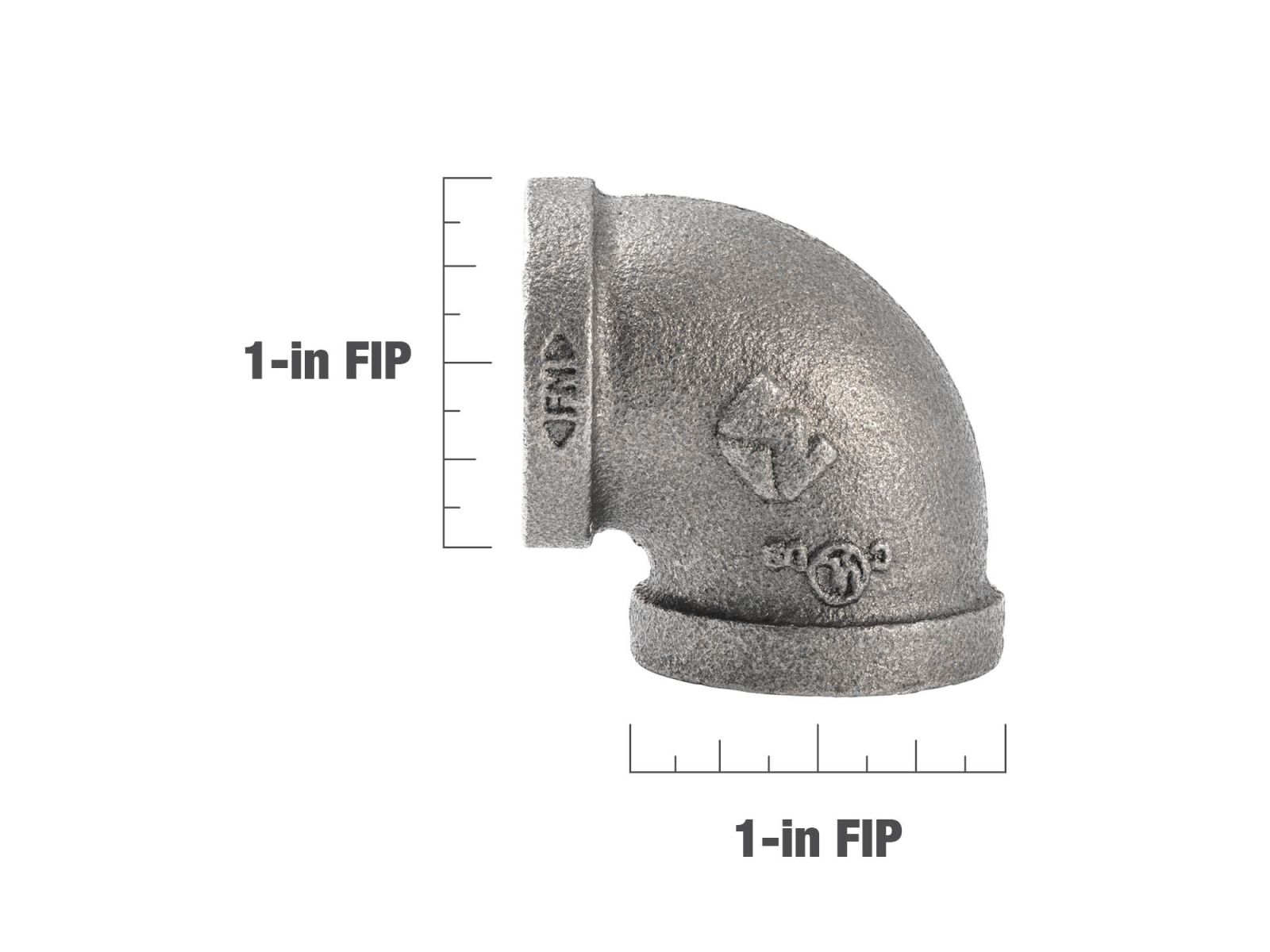

Inlet Diameter (in) 1
Inlet Connection FIP
Outlet Diameter (in) 1
Outlet Connection FIP
Product Length (in) 2.36
Product Height (in) 1.81
Product Width (in) 2.36
Product Weight (lbs) 0.5720
Working Pressure (PSI) 232
Maximum Pressure (PSI) 300
Minimum Temperature (ºF) -20
Working Temperature (ºF) 77
Maximum Temperature (ºF) 347
Unit of Measure EA
Prop65 ID Lead and Lead Compounds
Warranty Code 1-year limited warranty
Product Type 90 Elbows
Product Material Malleable Iron
Standards HHXX,FM1920
