category:
Bath & Kitchen Products
diameter:
1-1/2
height:
2.44 "
length:
3.86 "
manufacturer:
B&K Products
mpn:
520-307HC
subcategory:
Elbow
upc:
032888210219
weight:
1.1770 lbs
width:
2.87 "
Product Description

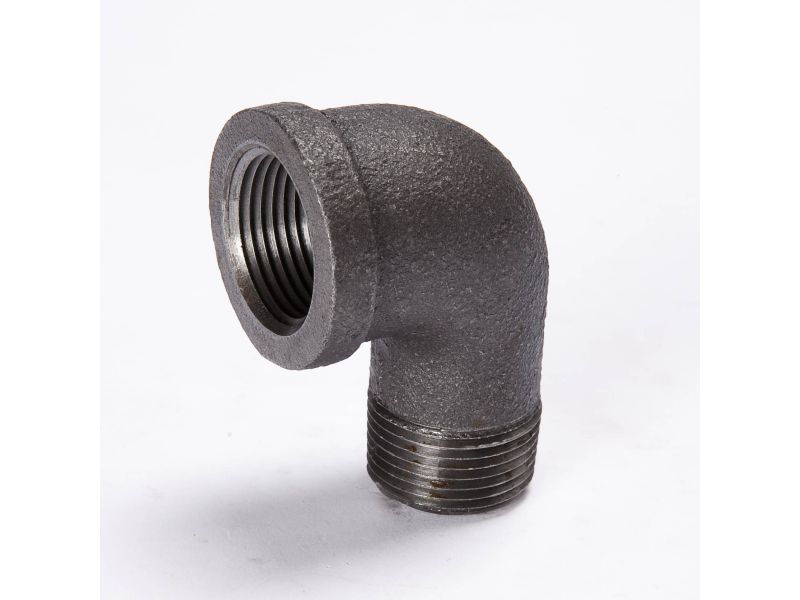

B&K Products - 520-307HC Street Elbows are used around existing piping mounted on flat surfaces such as a wall or ceiling. General uses for this product are for transporting lubricant, oil, grease, LP gases fuel or to create your own DIY projects.
Features- Generally used for lubricant, oil, grease, liquefied petroleum (LP) gas, natural gases (nitrogen, oxygen, etc.), steam and diesel
- 150-lb class malleable fittings
- Relative softness of metal helps provide a sure seal
- This fitting works up to 500 PSI at 150°F
- Threaded ends comply with ANSI/ASME B1.20.1 standards
- Meet ASTM and ASME standards
Additional Information
Inlet Diameter (in) 1-1/2
Inlet Connection MIP
Outlet Diameter (in) 1-1/2
Outlet Connection FIP
Product Length (in) 3.86
Product Height (in) 2.44
Product Width (in) 2.87
Product Weight (lbs) 1.1770
Working Pressure (PSI) 145
Maximum Pressure (PSI) 300
Minimum Temperature (ºF) -20
Working Temperature (ºF) 72
Maximum Temperature (ºF) 366
Unit of Measure EA
Prop65 ID Lead
Warranty Code 1-year limited warranty
Product Type 90 Elbows
Product Material Malleable Iron
Standards HHXX,FM1920
