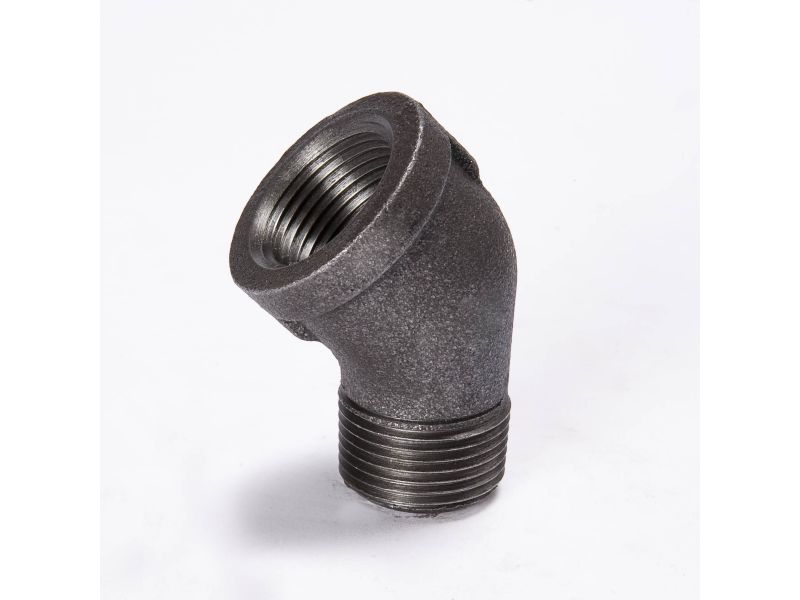

B&K Products 520-500 1/8" Street Elbow 45

B&K Products 520-500 1/8" Street Elbow 45

Back Order

Get it by Mon, Jun 02 - Sat, Jun 07

SKU kpi141-520-500

0
(0 rating)
$2.42 USD
$2.42 USD
Sale Sold out
Shipping calculated at checkout.
View full details
  • 30-day returns
  • Fast shipping
  • Secure payments
  • Over 300,000 products
category: Bath & Kitchen Products
diameter: 1/8
height: 0.75 "
length: 0.71 "
manufacturer: B&K Products
mpn: 520-500
subcategory: Elbow
upc: 032888370401
weight: 0.0514 lbs
width: 1.57 "

Product Description

B&K Products - 520-500 Street Elbows are used around existing piping mounted on flat surfaces such as a wall or ceiling. General uses for this product are for transporting lubricant, oil, grease, LP gases fuel or to create your own DIY projects. This fitting is not designed for potable water applications.

Features
  • Generally used for lubricant, oil, grease, liquefied petroleum (LP) gas, natural gases (nitrogen, oxygen, etc.), steam and diesel
  • 150-lb class malleable fittings
  • Relative softness of metal helps provide a sure seal
  • This fitting works up to 500 PSI at 150°F
  • Threaded ends comply with ANSI/ASME B1.20.1 standards
  • Meet ASTM and ASME standards

Additional Information

Inlet Diameter (in) 1/8
Inlet Connection FIP
Outlet Diameter (in) 1/8
Outlet Connection MIP
Product Length (in) 0.71
Product Height (in) 0.75
Product Width (in) 1.57
Product Weight (lbs) 0.0514
Working Pressure (PSI) 232
Maximum Pressure (PSI) 300
Minimum Temperature (ºF) -20
Working Temperature (ºF) 77
Maximum Temperature (ºF) 347
Unit of Measure EA
Prop65 ID Lead
Warranty Code 1-year limited warranty
Product Type 45 Elbows
Product Material Malleable Iron
Standards NSF/ANSI 372,NSF/ANSI 61,ASME B16.3
