category:
Structural Fittings & Pipe Structural Fittings
diameter:
1-1/2
height:
2.44 "
length:
2.72 "
manufacturer:
B&K Products
mpn:
520-773HC
subcategory:
Tees
upc:
032888994348
weight:
1.0790 lbs
width:
2.87 "
Product Description

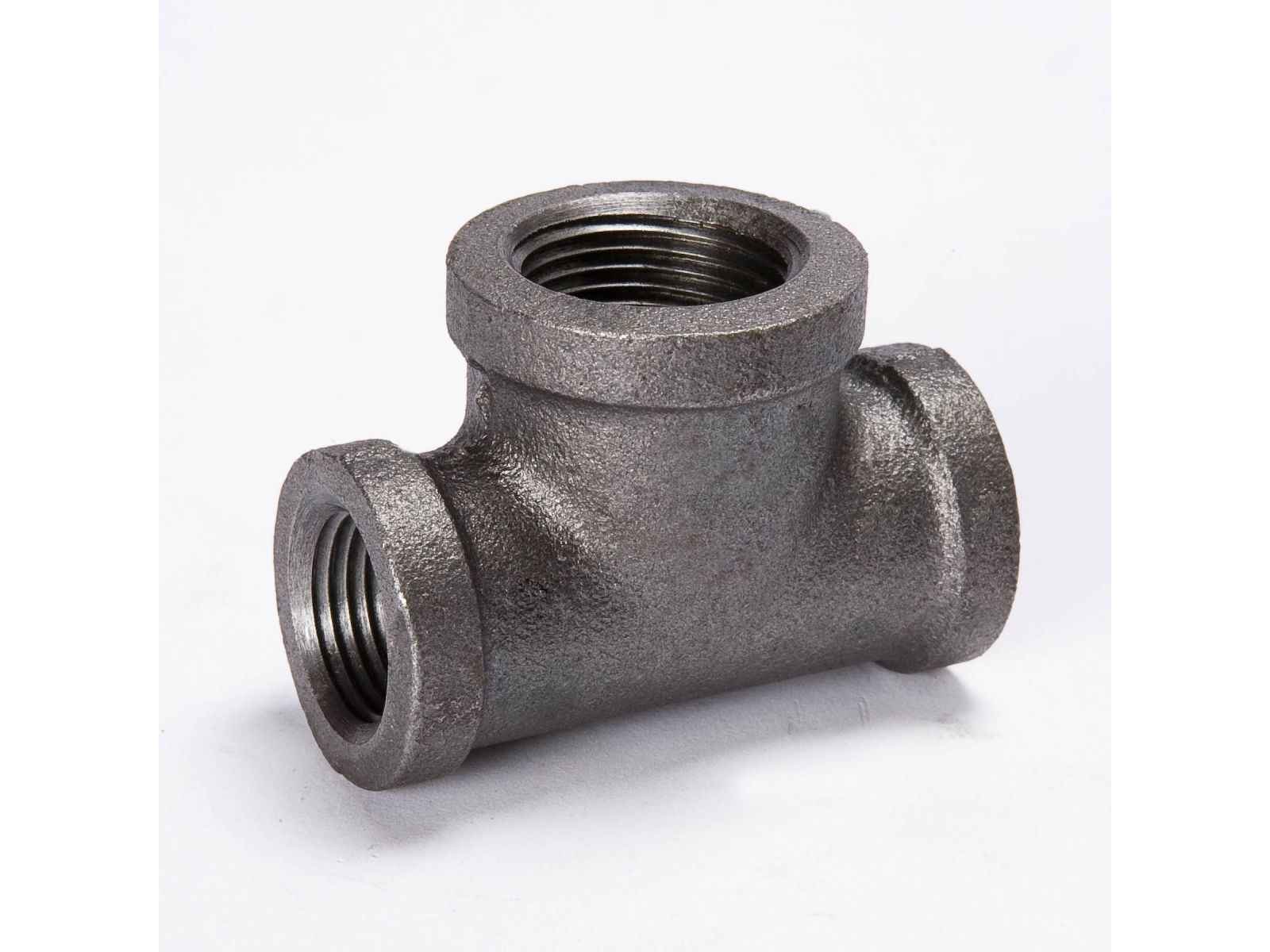

B&K Products - 520-773HC This Reducing Tee allows for connections with two or three different sizes. General uses for this product are for transporting lubricant, oil, grease, LP gases fuel or to create your own DIY projects. This fitting is not designed for potable water applications.
Features- Generally used for lubricant, oil, grease, liquefied petroleum (LP) gas, natural gases (nitrogen, oxygen, etc.), steam and diesel
- 150-lb class malleable fittings
- Relative softness of metal helps provide a sure seal
- This fitting works up to 500 PSI at 150°F
- Threaded ends comply with ANSI/ASME B1.20.1 standards
- Meet ASTM and ASME standards
Additional Information
Inlet Diameter (in) 1-1/2
Inlet Connection FIP
Outlet Diameter (in) 1-1/2
Outlet Connection FIP
Branch 1 Diameter (in) 1/2
Branch 1 Connection FIP
Product Length (in) 2.72
Product Height (in) 2.44
Product Width (in) 2.87
Product Weight (lbs) 1.0790
Working Pressure (PSI) 232
Maximum Pressure (PSI) 300
Minimum Temperature (ºF) -20
Working Temperature (ºF) 77
Maximum Temperature (ºF) 347
Unit of Measure EA
Prop65 ID Lead
Warranty Code 1-year limited warranty
Product Type 2-Way Reducing Tees
Product Material Malleable Iron
Standards HHXX,FM1920
