category:
Piping Systems
diameter:
3/4
height:
0.35 "
length:
1.69 "
manufacturer:
B&K Products
mpn:
520-904HC
subcategory:
Lock Nut
upc:
032888002746
weight:
0.0880 lbs
width:
1.46 "
Product Description

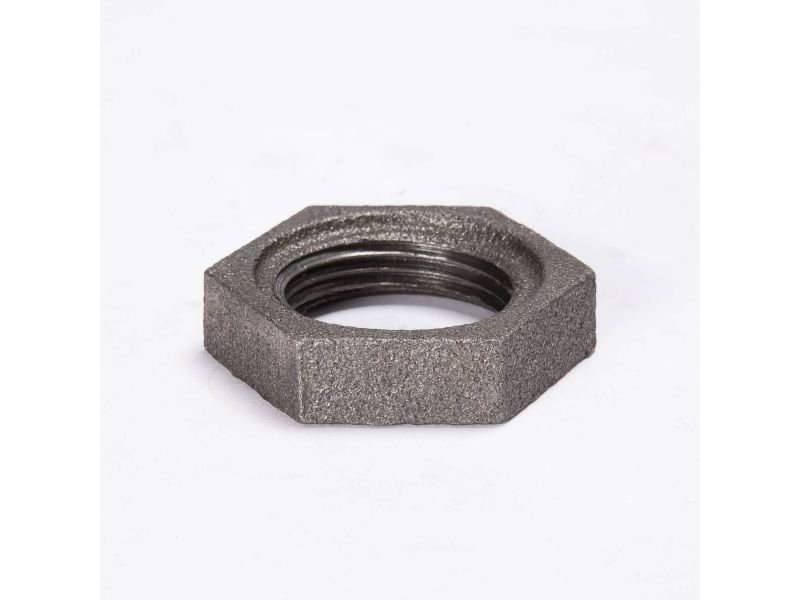

B&K Products - 520-904HC Lock Nuts help to firmly secure your connection to fittings, valves or other pipes. General uses for this product are for transporting lubricant, oil, grease, LP gases fuel or to create your own DIY projects. This fitting is not designed for potable water applications.
Features- Generally used for lubricant, oil, grease, liquefied petroleum (LP) gas, natural gases (nitrogen, oxygen, etc.), steam and diesel
- 150-lb class malleable fittings
- Relative softness of metal helps provide a sure seal
- This fitting works up to 500 PSI at 150°F
- Threaded ends comply with ANSI/ASME B1.20.1 standards
- Meet ASTM and ASME standards
Additional Information
Inlet Diameter (in) 3/4
Inlet Connection FIP
Product Length (in) 1.69
Product Height (in) 0.35
Product Width (in) 1.46
Product Weight (lbs) 0.0880
Working Pressure (PSI) 0
Maximum Pressure (PSI) 0
Minimum Temperature (ºF) -20
Working Temperature (ºF) 77
Maximum Temperature (ºF) 347
Unit of Measure EA
Prop65 ID Lead
Warranty Code 1-year limited warranty
Product Type Lock Nuts
Product Material Malleable Iron
Standards FM 1140,HHXX
