B&K Products 521-005 1" Cross

B&K Products 521-005 1" Cross

Dropship

Get it by Sat, Jul 19 - Thu, Jul 24

SKU kpi141-521-005

0
(0 rating)
$5.49 USD
$5.49 USD
Sale Sold out
Shipping calculated at checkout.
 More payment options
View full details
  • 30-day returns
  • Fast shipping
  • Secure payments
  • Over 300,000 products
category: Piping Systems
diameter: 1
height: 1.75 "
length: 2.76 "
manufacturer: B&K Products
mpn: 521-005
subcategory: Cross
upc: 032888371330
weight: 0.9855 lbs
width: 2.76 "

Product Description

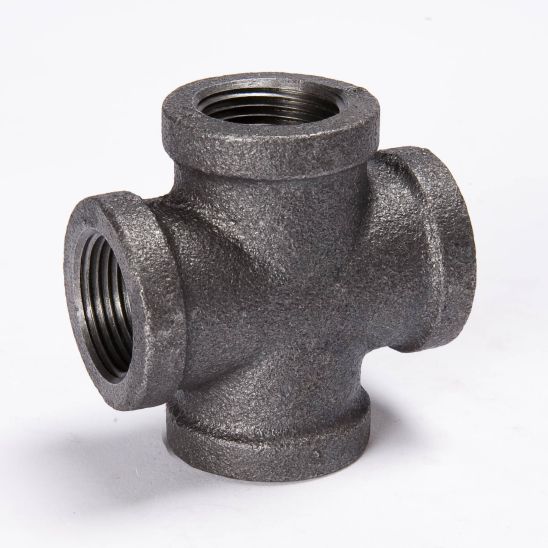

B&K Products - 521-005 When two piping systems intersect, the Cross will provide the needed secure connection. General uses for this product are for transporting lubricant, oil, grease, LP gases fuel or to create your own DIY projects. This fitting is not designed for potable water applications.

Features
  • Generally used for lubricant, oil, grease, liquefied petroleum (LP) gas, natural gases (nitrogen, oxygen, etc.), steam and diesel
  • 150-lb class malleable fittings
  • Relative softness of metal helps provide a sure seal
  • This fitting works up to 500 PSI at 150°F
  • Threaded ends comply with ANSI/ASME B1.20.1 standards
  • Meet ASTM and ASME standards

Additional Information

Inlet Diameter (in) 1
Inlet Connection FIP
Outlet Diameter (in) 1
Outlet Connection FIP
Branch 1 Diameter (in) 1
Branch 1 Connection FIP
Branch 2 Diameter (in) 1
Branch 2 Connection FIP
Product Length (in) 2.76
Product Height (in) 1.75
Product Width (in) 2.76
Product Weight (lbs) 0.9855
Working Pressure (PSI) 232
Maximum Pressure (PSI) 300
Minimum Temperature (ºF) -20
Working Temperature (ºF) 77
Maximum Temperature (ºF) 347
Unit of Measure EA
Prop65 ID Styrene
Warranty Code 1-year limited warranty
Product Type Crosses
Product Material Malleable Iron
Standards NSF/ANSI 372,NSF/ANSI 61,ASME B16.3,FM 1920
