category:
Piping Systems
diameter:
3/8
height:
0.55 "
length:
2.72 "
manufacturer:
B&K Products
mpn:
521-602HP
subcategory:
Floor Flange
upc:
032888210226
weight:
0.2500 lbs
width:
2.72 "
Product Description

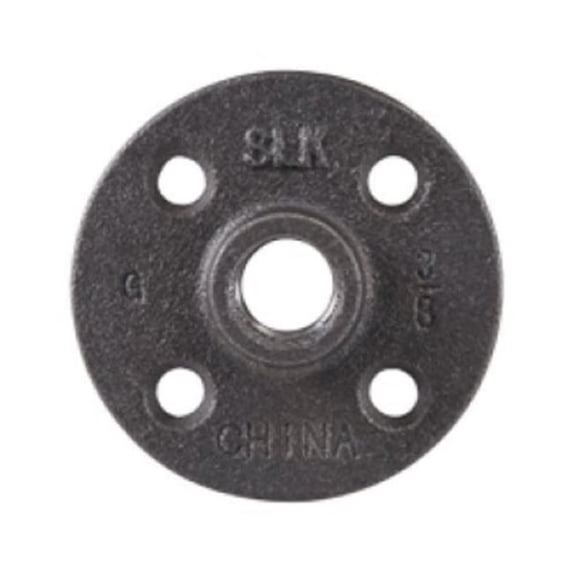

B&K Products - 521-602HP Flanges allow for a secure piping connection to either the floor or wall. General uses for this product are for transporting lubricant, oil, grease, LP gases fuel or to create your own DIY projects. This fitting is not designed for potable water applications.
Features- Generally used for lubricant, oil, grease, liquefied petroleum (LP) gas, natural gases (nitrogen, oxygen, etc.), steam and diesel
- 150-lb class malleable fittings
- Relative softness of metal helps provide a sure seal
- This fitting works up to 500 PSI at 150°F
- Threaded ends comply with ANSI/ASME B1.20.1 standards
- Meet ASTM and ASME standards
Additional Information
Inlet Diameter (in) 3/8
Inlet Connection FIP
Product Length (in) 2.72
Product Height (in) 0.55
Product Width (in) 2.72
Product Weight (lbs) 0.2500
Working Pressure (PSI) 0
Maximum Pressure (PSI) 0
Minimum Temperature (ºF) -20
Working Temperature (ºF) 77
Maximum Temperature (ºF) 347
Unit of Measure EA
Prop65 ID Lead and Lead Compounds
Warranty Code 1-year limited warranty
Product Type Floor Flanges
Product Material Malleable Iron
Standards FM 1140
