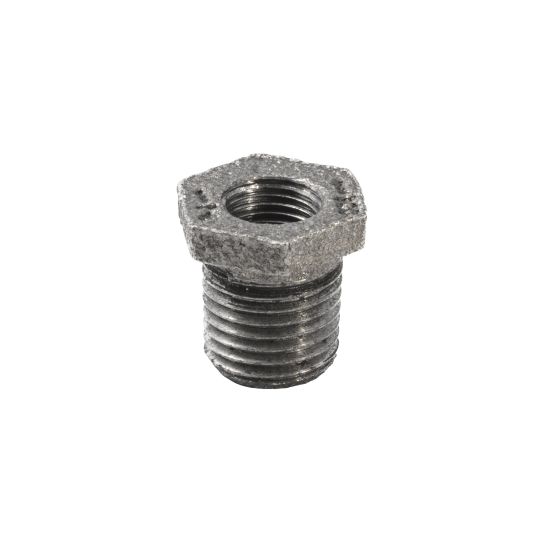

B&K Products 521-910Hc 1/4 X 1/8 Hex Bushing

B&K Products 521-910Hc 1/4 X 1/8 Hex Bushing

Dropship

SKU SKU:kpi141-521-910HC

GTIN : 032888998643

MPN : 521-910HC

Regular price $1.45 USD
Regular price Sale price $1.45 USD
Sale Sold out
Shipping calculated at checkout.
No offers currently available
View full details
  • 30-day returns
  • Fast shipping
  • Secure payments
  • Over 300,000 products

B&K Products - 521-910HC The Hex Bushing allows you to connect two pipes of different sizes and connections. General uses for this product are for transporting lubricant, oil, grease, LP gases fuel or to create your own DIY projects. This fitting is not designed for potable water applications.

Features
  • Generally used for lubricant, oil, grease, liquefied petroleum (LP) gas, natural gases (nitrogen, oxygen, etc.), steam and diesel
  • 150-lb class malleable fittings
  • Relative softness of metal helps provide a sure seal
  • This fitting works up to 500 PSI at 150°F
  • Threaded ends comply with ANSI/ASME B1.20.1 standards
  • Meet ASTM and ASME standards

Additional Information

Inlet Diameter (in) 1/4
Inlet Connection MIP
Outlet Diameter (in) 1/8
Outlet Connection FIP
Product Length (in) 0.79
Product Height (in) 0.79
Product Width (in) 0.67
Product Weight (lbs) 0.0330
Working Pressure (PSI) 232
Maximum Pressure (PSI) 300
Minimum Temperature (ºF) -20
Working Temperature (ºF) 77
Maximum Temperature (ºF) 347
Unit of Measure EA
Warranty Code 1-year limited warranty
Product Type Hex Bushings
Product Material Malleable Iron
Standards FM 1140
CategoryPiping Systems
Diameter1/4
Height0.79 "
Length0.79 "
ManufacturerB&K Products
Mpn521-910HC
SubcategoryHex Bushing
Upc032888998643
Weight0.0330 lbs
Width0.67 "
