category:
Piping Systems
diameter:
3/4
height:
1.02 "
length:
1.34 "
manufacturer:
B&K Products
mpn:
521-940HC
subcategory:
Hex Bushing
upc:
032888998667
weight:
0.1510 lbs
width:
1.14 "
Product Description

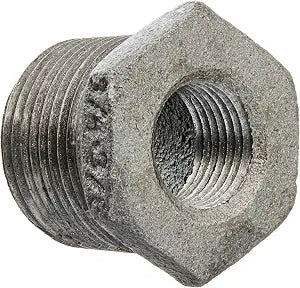

B&K Products - 521-940HC The Hex Bushing allows you to connect two pipes of different sizes and connections. General uses for this product are for transporting lubricant, oil, grease, LP gases fuel or to create your own DIY projects. This fitting is not designed for potable water applications.
Features- Generally used for lubricant, oil, grease, liquefied petroleum (LP) gas, natural gases (nitrogen, oxygen, etc.), steam and diesel
- 150-lb class malleable fittings
- Relative softness of metal helps provide a sure seal
- This fitting works up to 500 PSI at 150°F
- Threaded ends comply with ANSI/ASME B1.20.1 standards
- Meet ASTM and ASME standards
Additional Information
Inlet Diameter (in) 3/4
Inlet Connection MIP
Outlet Diameter (in) 1/8
Outlet Connection FIP
Product Length (in) 1.34
Product Height (in) 1.02
Product Width (in) 1.14
Product Weight (lbs) 0.1510
Working Pressure (PSI) 232
Maximum Pressure (PSI) 300
Minimum Temperature (ºF) -20
Working Temperature (ºF) 77
Maximum Temperature (ºF) 347
Unit of Measure EA
Warranty Code 1-year limited warranty
Product Type Hex Bushings
Product Material Malleable Iron
Standards HHXX
