category:
DC Motors
manufacturer:
Baldor
mpn:
CD2015R-BV
subcategory:
RPM III Motors
weight:
350
Product Description

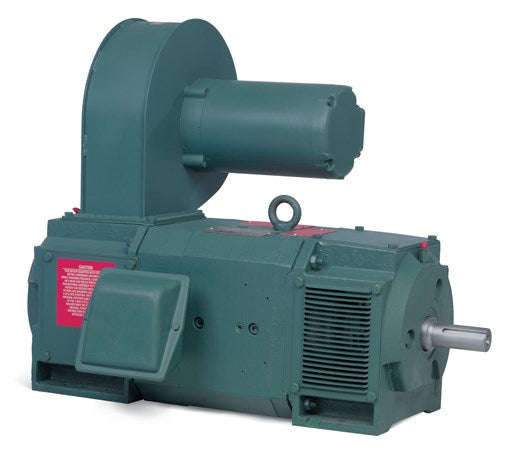

Baldor - CD2015R-BV
Additional Information
ManufacturerBaldor
Nameplate Output0.75
Number of Poles2
Phase3
MultiplierN2
Shaft Diameter (In.)1.375
Speed 3600 RPM
Product Style GRINDER
Wheel Bore Size (In.)0.75
Wheel Diameter(In.)8
Wheel Face(.)1
Starting Method Full Voltage
Frame SC2113ATCZ
Output @ Frequency 75.000 HP @ 60 HZ
Synchronous Speed @ Frequency 1200 RPM @ 60 HZ
Voltage @ Frequency 230.0 V @ 60 HZ
Frame Material Steel
Motor Letter Type Three Phase
Catalog Number CCPX40766T
Enclosure DP
XP Division Not Applicable
Agency Approvals CCSA US
Armature Voltage 240 V
Base Speed 1750 RPM
Field Voltage 150 V
Output Power 15.000 HP
Ambient Temperature 40 °C
Armature Current 56.0 a
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Drip Cover No Drip Cover
Duty Rating CONT
Feedback Device NO FEEDBACK
Field Winding Type STR SHUNT
Frame Prefix SC
Heater Indicator No Heater
Insulation Class F
Lifting Lugs Standard Lifting Lugs
Mounting Arrangement F1
Overall Length 28.00 IN
Service Factor 1.00
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Slinger Indicator No Slinger
Motor Standards NEMA
