manufacturer:
Baldor
mpn:
CD2105R
weight:
355

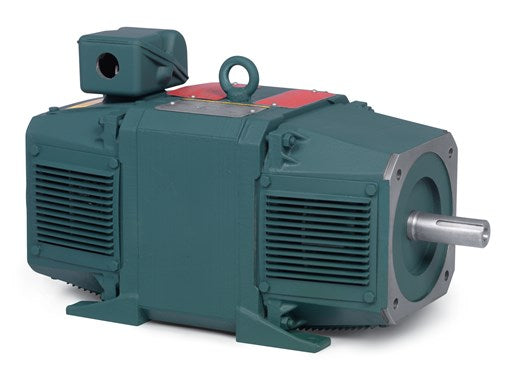

Baldor - CD2105R
Additional Information
ManufacturerBaldor
Nameplate Output0.75
Number of Poles2
Phase3
MultiplierN2
Shaft Diameter (In.)1.125
Speed 3600 RPM
Product Style GRINDER
Wheel Bore Size (In.)0.75
Wheel Diameter(In.)8
Wheel Face(.)1
Starting Method Full Voltage
Frame DC2112ATCZ
Output @ Frequency 75.000 HP @ 60 HZ
Synchronous Speed @ Frequency 1200 RPM @ 60 HZ
Voltage @ Frequency 230.0 V @ 60 HZ
Frame Material Laminated
Motor Letter Type Three Phase
Catalog Number CCPX40766T
Enclosure TENV
XP Division Not Applicable
Agency Approvals CCSA US
Armature Voltage 180 V
Base Speed 1750 RPM
Field Voltage 200 V
Output Power 5.000 HP
Ambient Temperature 40 °C
Armature Current 23.0 a
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Drip Cover No Drip Cover
Duty Rating CONT
Feedback Device NO FEEDBACK
Field Winding Type STR. SHUNT
Frame Prefix DC
Heater Indicator No Heater
Insulation Class F
Lifting Lugs Standard Lifting Lugs
Mounting Arrangement F3
Overall Length 27.22 IN
Service Factor 1.00
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Slinger Indicator No Slinger
Motor Standards NEMA
