manufacturer:
Baldor
mpn:
CDMG2310
weight:
260

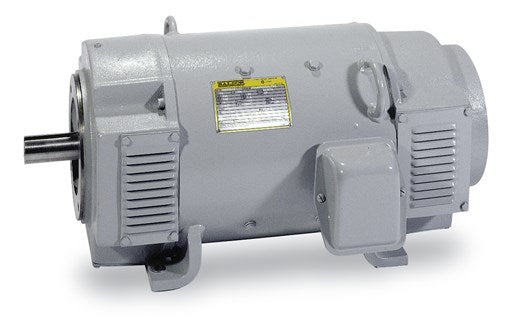

Baldor - CDMG2310
Additional Information
ManufacturerBaldor
Nameplate Output0.75
Number of Poles2
Phase3
MultiplierN2
Shaft Diameter (In.)1.375
Speed 3600 RPM
Product Style GRINDER
Wheel Bore Size (In.)0.75
Wheel Diameter(In.)8
Wheel Face(.)1
Starting Method Full Voltage
Frame 219ATC
Output @ Frequency .750 HP @ 60 HZ
Synchronous Speed @ Frequency 1200 RPM @ 60 HZ
Voltage @ Frequency 230.0 V @ 60 HZ
Frame Material Steel
Motor Letter Type Three Phase
Catalog Number CDM3543
Enclosure DPFG
XP Division Not Applicable
Agency Approvals CSA
Armature Voltage 230 V
Base Speed 2500 RPM
Field Voltage 230 V
Output Power 10.000 KW
Ambient Temperature 40 °C
Armature Current 43.5 a
Base Indicator Rigid
Bearing Grease Type No Grease
Drip Cover No Drip Cover
Duty Rating CONT
Feedback Device NO FEEDBACK
Field Winding Type COMPOUND
Frame Prefix DC
Heater Indicator No Heater
Insulation Class F
Lifting Lugs Standard Lifting Lugs
Mounting Arrangement F2
Overall Length 24.50 IN
Service Factor 1.00
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Slinger Indicator No Slinger
Motor Standards NEMA
