category:
DC Motors
manufacturer:
Baldor
mpn:
CDPT3310
subcategory:
Fractional and Permanent Magnet
type:
General Purpose DC Motors
weight:
27
Product Description

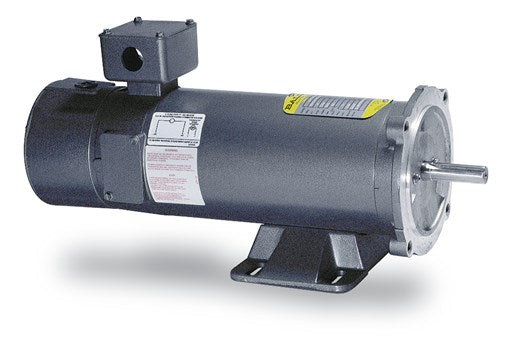

Baldor - CDPT3310
Additional Information
ManufacturerBaldor
Nameplate Output0.75
Number of Poles2
Phase3
MultiplierK
Shaft Diameter (In.)2.125
Speed 3600 RPM
Product Style GRINDER
Wheel Bore Size (In.)0.75
Wheel Diameter(In.)8
Wheel Face(.)1
Starting Method Full Voltage
Frame 56C
Output @ Frequency .750 HP @ 60 HZ
Synchronous Speed @ Frequency 1200 RPM @ 60 HZ
Voltage @ Frequency 230.0 V @ 60 HZ
Frame Material Steel
Motor Letter Type Three Phase
Catalog Number CDM3543
Enclosure TENV
XP Division Not Applicable
Agency Approvals CE
Armature Voltage 90 V
Base Speed 1750 RPM
Field Voltage 230 V
Output Power 0.250 HP
Ambient Temperature 40 °C
Armature Current 144.0 a
Base Indicator Rigid
Bearing Grease Type No Grease
Drip Cover No Drip Cover
Duty Rating CONT
Feedback Device NO FEEDBACK
Field Winding Type COMPOUND
Frame Prefix DC
Heater Indicator No Heater
Insulation Class F
Lifting Lugs Standard Lifting Lugs
Mounting Arrangement F2
Overall Length 34.63 IN
Service Factor 1.00
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Slinger Indicator No Slinger
Motor Standards NEMA
