category:
DC Motors
manufacturer:
Baldor
mpn:
CDX7200
subcategory:
Fractional HP Motors
weight:
135
Product Description

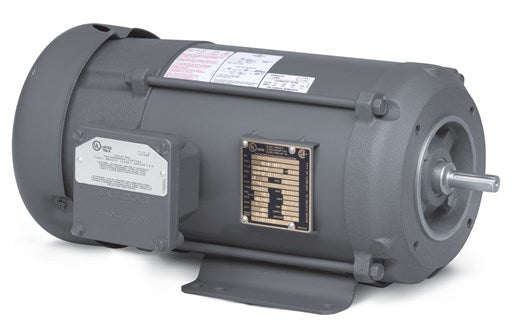

Baldor - CDX7200
Additional Information
ManufacturerBaldor
Nameplate Output0.75
Number of Poles2
Phase1
MultiplierL1
Shaft Diameter (In.)2.125
Speed 3600 RPM
Product Style GRINDER
Wheel Bore Size (In.)0.75
Wheel Diameter(In.)8
Wheel Face(.)1
Starting Method Full Voltage
Frame 56C
Output @ Frequency 1.000 HP @ 60 HZ
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Voltage @ Frequency 115.0 V @ 60 HZ
Frame Material Steel
Motor Letter Type Cap Start, Induction Run
Catalog Number CDRXL05144
Enclosure XPFC
XP Class and Group CLI GP C,D
XP Division Division I
Agency Approvals CSA
Armature Voltage 180 V
Base Speed 1750 RPM
Field Voltage 100 V
Output Power 1.500 HP
Ambient Temperature 40 °C
Armature Current 144.0 a
Base Indicator Rigid
Bearing Grease Type No Grease
Drip Cover No Drip Cover
Duty Rating CONT
Feedback Device NO FEEDBACK
Field Winding Type COMPOUND
Frame Prefix DC
Heater Indicator No Heater
Insulation Class F
Lifting Lugs Standard Lifting Lugs
Mounting Arrangement F2
Overall Length 34.63 IN
Service Factor 1.00
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Slinger Indicator No Slinger
Motor Standards NEMA
