category:
AC Motors
manufacturer:
Baldor
mpn:
CEM3710T-5
subcategory:
General Purpose
type:
Three Phase Enclosed
weight:
129
Product Description

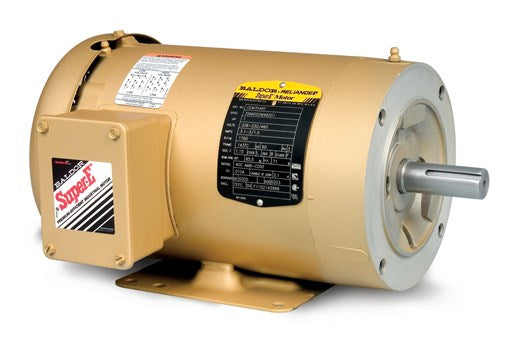

Baldor - CEM3710T-5
Additional Information
ManufacturerBaldor
Nameplate Output0.75
Number of Poles4
Phase3
MultiplierL1
Shaft Diameter (In.)3.375
Speed 1785 RPM
Product Style GRINDER
Wheel Bore Size (In.)0.75
Wheel Diameter(In.)8
Wheel Face(.)1
Starting Method Direct on line
Frame 213TC
Output @ Frequency 7.500 HP @ 60 HZ
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Voltage @ Frequency 575.0 V @ 60 HZ
Frame Material Steel
Motor Letter Type Three Phase
Catalog Number CEM3710T-5
Enclosure TEFC
XP Division Not Applicable
Agency Approvals CSA
Armature Voltage 180 V
Base Speed 1750 RPM
Field Voltage 100 V
Output Power 1.500 HP
Ambient Temperature 40 °C
Armature Current 144.0 a
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Drip Cover No Drip Cover
Duty Rating CONT
Feedback Device NO FEEDBACK
Field Winding Type COMPOUND
Frame Prefix DC
Heater Indicator No Heater
Insulation Class F
Lifting Lugs Standard Lifting Lugs
Mounting Arrangement F1
Overall Length 44.96 IN
Service Factor 1.15
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Slinger Indicator Shaft Slinger
Motor Standards NEMA
Auxillary Box No Auxillary Box
Constant Torque Speed Range 10-60
Current @ Voltage 144.000 A @ 460.0 V
Design Code B
Efficiency @ 100% Load 95.4 %
Enclosure Modification Severe Duty Features
High Voltage Full Load Amps 144.0 a
Inverter Code Inverter Ready
KVA Code G
Motor Lead Quantity/Wire Size 3 @ 1/0 AWG
Motor Type A44076M
Power Factor 85
Product Family General Industrial
Pulley End Bearing Type Ball
Pulley Face Code C-Face
Shaft Rotation Reversible
Speed Code Single Speed
XP Temp Code T3
