category:
Severe Duty
manufacturer:
Baldor
mpn:

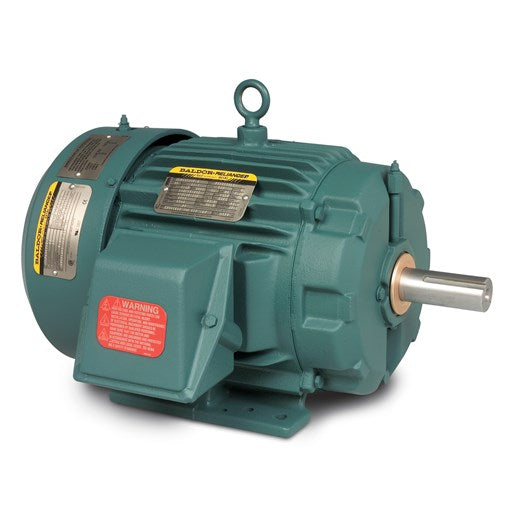

ECP63774TR-4
weight:
231
Additional Information
ManufacturerBaldor
Nameplate Output0.75
Number of Poles4
Phase3
MultiplierSD
Shaft Diameter (In.)3.375
Speed 1785 RPM
Product Style GRINDER
Wheel Bore Size (In.)0.75
Wheel Diameter(In.)8
Wheel Face(.)1
Starting Method Direct on line
Frame 215T
Output @ Frequency 10.000 HP @ 60 HZ
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Voltage @ Frequency 460.0 V @ 60 HZ
Frame Material Iron
Motor Letter Type Three Phase
Catalog Number ECP63774TR-4
Enclosure TEFC
XP Class and Group CLI GP A,B,C,D
XP Division Division II
Agency Approvals CSA
Armature Voltage 230 V
Base Speed 1750 RPM
Field Voltage 230 V
Output Power 40.000 KW
Ambient Temperature 40 °C
Armature Current 174.0 a
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Drip Cover No Drip Cover
Duty Rating CONT
Feedback Device NO FEEDBACK
Field Winding Type COMPOUND
Frame Prefix L
Heater Indicator Heater Included, 115 V
Insulation Class F
Lifting Lugs No Lifting Lugs
Mounting Arrangement F1
Overall Length 60.21 IN
Service Factor 1.15
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Slinger Indicator Shaft Slinger
Motor Standards NEMA
Auxillary Box No Auxillary Box
Constant Torque Speed Range 30-60
Current @ Voltage 501.000 A @ 460.0 V
Design Code B
Efficiency @ 100% Load 96.2 %
Enclosure Modification Severe Duty Features
High Voltage Full Load Amps 501.0 a
Inverter Code Inverter Ready
KVA Code F
Motor Lead Quantity/Wire Size 12 @ 1 AWG
Motor Type A44208M
Power Factor 87
Product Family General Industrial
Pulley End Bearing Type Ball
Pulley Face Code Standard
Shaft Rotation Reversible
Speed Code Single Speed
Thermal Device - Winding RTD Only
XP Temp Code T2C
