category:
General Purpose
manufacturer:
Baldor
mpn:
EL1319T
subcategory:
Single Phase Open
weight:
50
Product Description

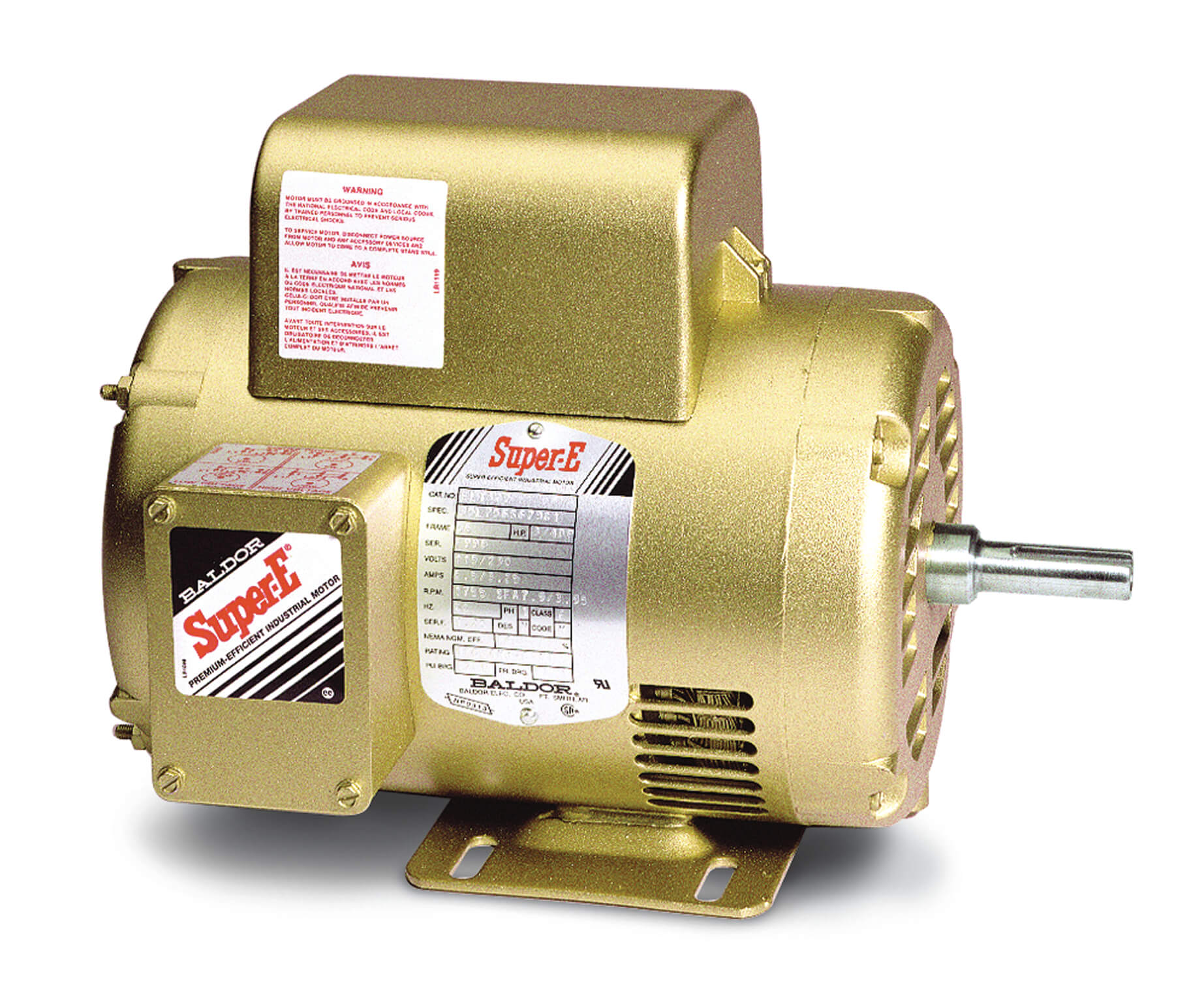

Baldor - EL1319T
Additional Information
ManufacturerBaldor
Nameplate Output0.75
Number of Poles8
Phase1
MultiplierL1
Shaft Diameter (In.)3.375
Speed 890 RPM
Product Style GRINDER
Wheel Bore Size (In.)0.75
Wheel Diameter(In.)8
Wheel Face(.)1
Starting Method Direct on line
Frame 145T
Output @ Frequency 1.500 HP @ 60 HZ
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Voltage @ Frequency 230.0 V @ 60 HZ
Frame Material Steel
Motor Letter Type Cap Start, Cap Run
Catalog Number EL1319T
Enclosure OPEN
XP Division Not Applicable
Agency Approvals CSA
Armature Voltage 230 V
Base Speed 1750 RPM
Field Voltage 230 V
Output Power 40.000 KW
Ambient Temperature 40 °C
Armature Current 174.0 a
Base Indicator Rigid
Bearing Grease Type Mobil SHC 220 (Athens Only)
Drip Cover No Drip Cover
Duty Rating CONT
Feedback Device NO FEEDBACK
Field Winding Type COMPOUND
Frame Prefix L
Heater Indicator No Heater
Insulation Class F
Lifting Lugs No Lifting Lugs
Mounting Arrangement F1
Overall Length 44.87 IN
Service Factor 1.25
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Slinger Indicator Shaft Slinger
Motor Standards NEMA
Auxillary Box No Auxillary Box
Constant Torque Speed Range 6-60
Current @ Voltage 98.800 A @ 460.0 V
Design Code A
Efficiency @ 100% Load 93.6 %
Enclosure Modification Severe Duty Features
High Voltage Full Load Amps 98.8 a
Inverter Code Inverter Ready
KVA Code H
Motor Lead Quantity/Wire Size 3 @ 1 AWG
Motor Type A44076M
Power Factor 76
Product Family Crusher / Chipper
Pulley End Bearing Type Roller
Pulley Face Code Standard
Shaft Rotation Reversible
Speed Code Single Speed
XP Temp Code T2C
Max Speed 3000 RPM
