category:
AC Motors
manufacturer:
Baldor
mpn:
EM4103T-12
subcategory:
General Purpose
type:
Three Phase Enclosed
weight:
400
Product Description

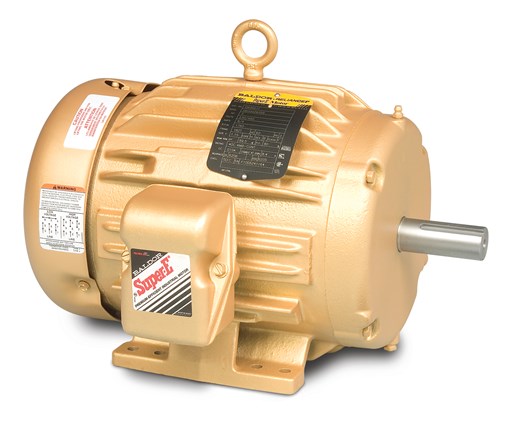

Baldor - EM4103T-12
Additional Information
ManufacturerBaldor
Nameplate Output0.75
Number of Poles4
Phase3
MultiplierL1
Shaft Diameter (In.)0.625
Speed 1760 RPM
Product Style GRINDER
Wheel Bore Size (In.)0.75
Wheel Diameter(In.)8
Wheel Face(.)1
Starting Method Direct on line
Frame 284T
Output @ Frequency 25.000 HP @ 60 HZ
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Voltage @ Frequency 230.0 V @ 60 HZ
Frame Material Iron
Motor Letter Type Three Phase
Catalog Number EM4103T-12
Enclosure TEFC
XP Division Not Applicable
Agency Approvals CSA
Armature Voltage 230 V
Base Speed 1750 RPM
Field Voltage 230 V
Output Power 40.000 KW
Ambient Temperature 40 °C
Armature Current 174.0 a
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Drip Cover No Drip Cover
Duty Rating CONT
Feedback Device NO FEEDBACK
Field Winding Type COMPOUND
Frame Prefix L
Heater Indicator No Heater
Insulation Class F
Lifting Lugs No Lifting Lugs
Mounting Arrangement F1
Overall Length 11.07 IN
Service Factor 1.15
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Slinger Indicator No Slinger
Motor Standards NEMA
Auxillary Box No Auxillary Box
Constant Torque Speed Range 6-60
Current @ Voltage 1.200 A @ 575.0 V
Design Code B
Efficiency @ 100% Load 85.5 %
Enclosure Modification Severe Duty Features
High Voltage Full Load Amps 1.2 a
Inverter Code Inverter Ready
KVA Code L
Motor Lead Quantity/Wire Size 3 @ 18 AWG
Motor Type 3520M
Power Factor 71
Product Family General Purpose
Pulley End Bearing Type Ball
Pulley Face Code Standard
Shaft Rotation Reversible
Speed Code Single Speed
XP Temp Code T2C
Max Speed 3000 RPM
Electrically Isolated Bearing Not Electrically Isolated
Front Face Code Standard
Locked Bearing Indicator No Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Termination Flying Leads
Pulley Shaft Indicator Standard
RoHS Status ROHS COMPLIANT
Vibration Sensor Indicator No Vibration Sensor
