category:
AC Motors
manufacturer:
Baldor
mpn:
IDFRPM25304C
subcategory:
Variable Speed AC
type:
AC Laminated Frame - RPMAC Motors
weight:
513.001
Product Description

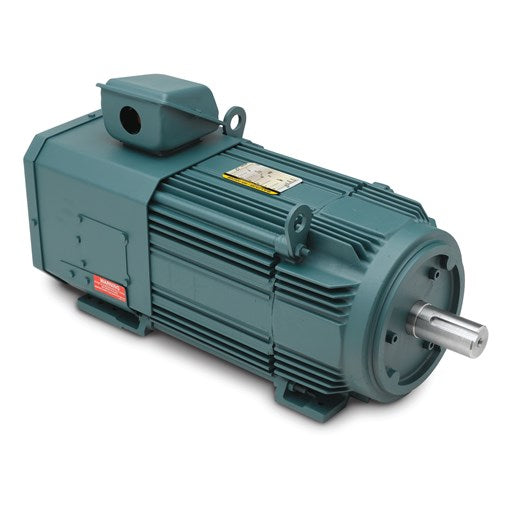

Baldor - IDFRPM25304C
Additional Information
ManufacturerBaldor
Nameplate Output0.75
Number of Poles4
Phase3
MultiplierE2
Shaft Diameter (In.)2.874
Speed 1770 RPM
Product Style GRINDER
Wheel Bore Size (In.)0.75
Wheel Diameter(In.)8
Wheel Face(.)1
Starting Method Direct on line
Frame FL2570C
Output @ Frequency 30.000 HP @ 60 HZ
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Voltage @ Frequency 460.0 V @ 60 HZ
Frame Material Laminated
Motor Letter Type Three Phase
Catalog Number IDFRPM25304C
Enclosure TEFC
XP Division Not Applicable
Agency Approvals CCSA US
Armature Voltage 230 V
Base Speed 1750 RPM
Field Voltage 230 V
Output Power 40.000 KW
Ambient Temperature 40 °C
Armature Current 174.0 a
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Drip Cover No Drip Cover
Duty Rating CONT
Feedback Device NO FEEDBACK
Field Winding Type COMPOUND
Frame Prefix RL
Heater Indicator No Heater
Insulation Class H
Lifting Lugs No Lifting Lugs
Mounting Arrangement F1
Overall Length 41.14 IN
Service Factor 1.00
Shaft Extension Location Pulley End
Shaft Ground Indicator Shaft Grounding
Shaft Slinger Indicator No Slinger
Motor Standards NEMA
Auxillary Box No Auxillary Box
Constant Torque Speed Range 6-60
Current @ Voltage 350.000 A @ 460.0 V
Design Code L
Efficiency @ 100% Load 84.0 %
Enclosure Modification 841
High Voltage Full Load Amps 350.0 a
Inverter Code Not Inverter
KVA Code K
Motor Lead Quantity/Wire Size 2 @ 16 AWG, A PH
Motor Type 3540LC
Power Factor 93
Product Family General Industrial
Pulley End Bearing Type Ball
Pulley Face Code Standard
Shaft Rotation Reversible
Speed Code Single Speed
Thermal Device - Winding Normally Closed Thermostat
XP Temp Code T2C
Max Speed 2700 RPM
Electrically Isolated Bearing Not Electrically Isolated
Front Face Code Terminal Panel
Locked Bearing Indicator No Locked Bearing
Motor Lead Exit Terminal Panel
Motor Lead Termination Flying Leads With QC
Pulley Shaft Indicator Standard
RoHS Status ROHS COMPLIANT
Vibration Sensor Indicator No Vibration Sensor
Winding Thermal 1 Automatic Thermal Overload
Winding Thermal 1 Location ES
