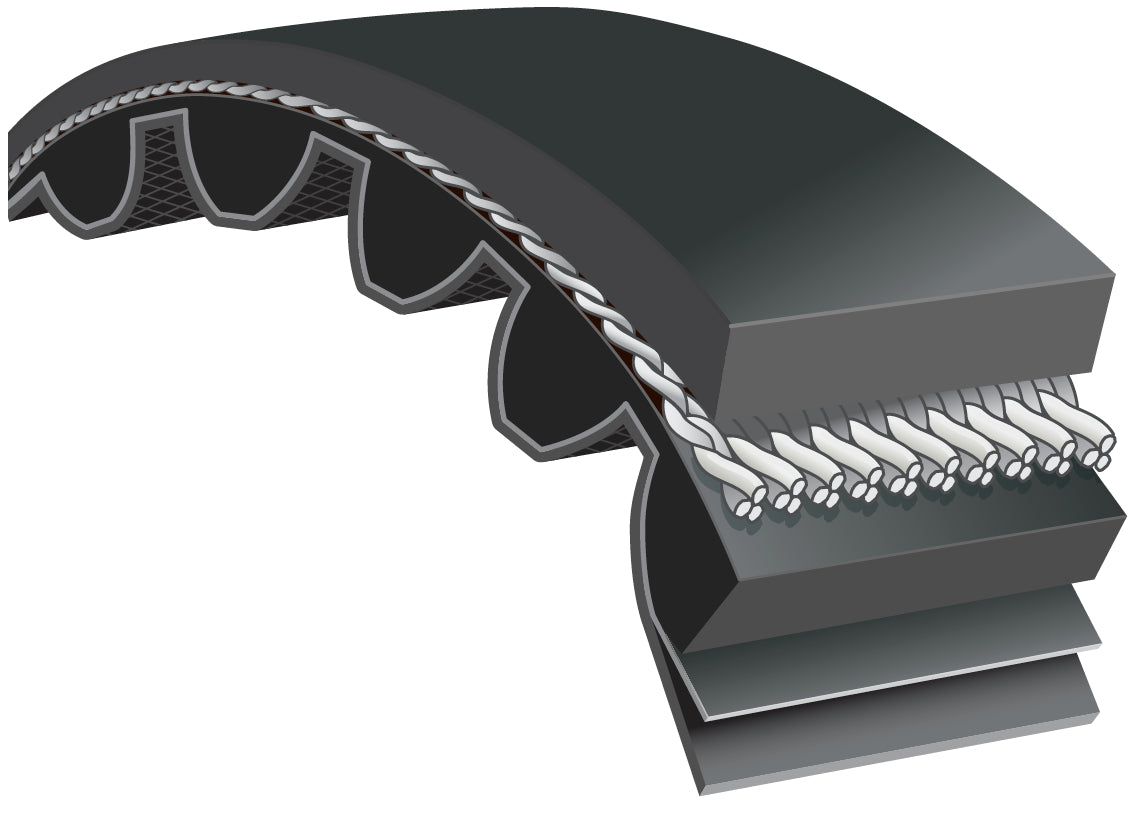

Bando - 100-S5M-1500 HP Anticipating the demand for energy savings and higher horsepower transmission, Bando developed our High Performance STS (HPSTS) belt, utilizing our time-proven technology and experience.
- High durometer oil and heat resistant, static conductive synthetic rubber protect against tooth deformation, minimizing fatigue.
- Tooth canvas provides a low coefficient of friction, lowering noise levels.
- This HPSTS belt achieves exceptionally higher power transmission - up to 2 times as high as conventional STS belts.
- Higher HP transmission minimizes the width of the belt, making system design as compact as possible.
- The narrower width of the belt and pulleys results in a quieter running drive.
- Runs in standard stock STS pulleys.
- HPS 5M is only available in clean specification, minimizing rubber dust.
Additional Information
Price Class530
Weight (lbs)0.1155
Number of Teeth300
Tooth Pitch (In)0.1969
Tooth Pitch (mm)5
Tooth ProfileS5M
Multiplier0.3392
Belt Width (In)0.394
Belt Width (mm)10
ColorBlack
Ribs/Teeth/Angle300
CordFiberglass
Height (In)0.1421
Height (mm)3.61
MaterialSynthetic Rubber
Nominal Outside Length (In)59.0551
Nominal Outside Length (mm)1500
CategoryIndustrial Belts
Country of originTW
Height3.61
Length1500
ManufacturerBando
Mpn100-S5M-1500 HP
No of ribs300
SubcategoryTiming Belts
TypeSyncro-Link STS HP Neoprene (Metric)
Width10
