category:
Industrial Belts
country_of_origin:
TW
height:
8.5
length:
1890
manufacturer:
Bando
mpn:
1000-KPS14M-1890
no_of_ribs:
135
subcategory:
Timing Belts
type:
Synchro-Link KPS Polyurethane (Metric)
width:
100

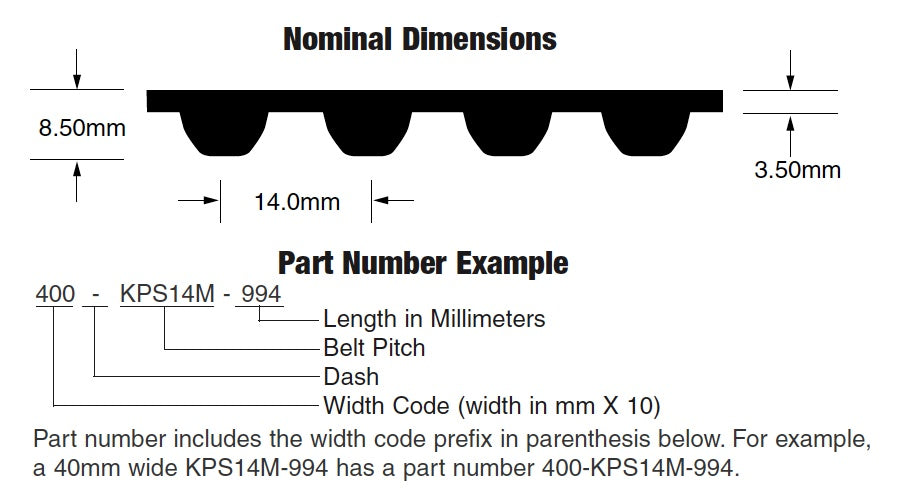

Product Description
Bando - 1000-KPS14M-1890 Utilizing high modulus aramid cords and the unique blue polyurethane body, the KPS II is the belt of choice for the applications requiring exceptional power transmission capabilities, particularly on lower speed-high torque drives.
- The KPS II belt transmits up to 5 times more power thana standard STS belt. This allows the same power transmission capacity to be achieved using narrower or smaller diameter pulleys, saving space and money.
- Wear-resistant polyurethane construction reduces rubber dust.
- Available in 8mm and 14 mm pitch.
- Utilize standard STS pulleys for a wide range of speed ratios.
Additional Information
Price Class551
Weight (lbs)2.7405
Number of Teeth135
Tooth Pitch (In)0.5512
Tooth Pitch (mm)14
Tooth ProfileKPS14M
Multiplier0.4844
Belt Width (In)3.937
Belt Width (mm)100
ColorBlue
Ribs/Teeth/Angle135
CordAramid
Height (In)0.3346
Height (mm)8.5
MaterialPolyurethane
Nominal Outside Length (In)74.4094
Nominal Outside Length (mm)1890
