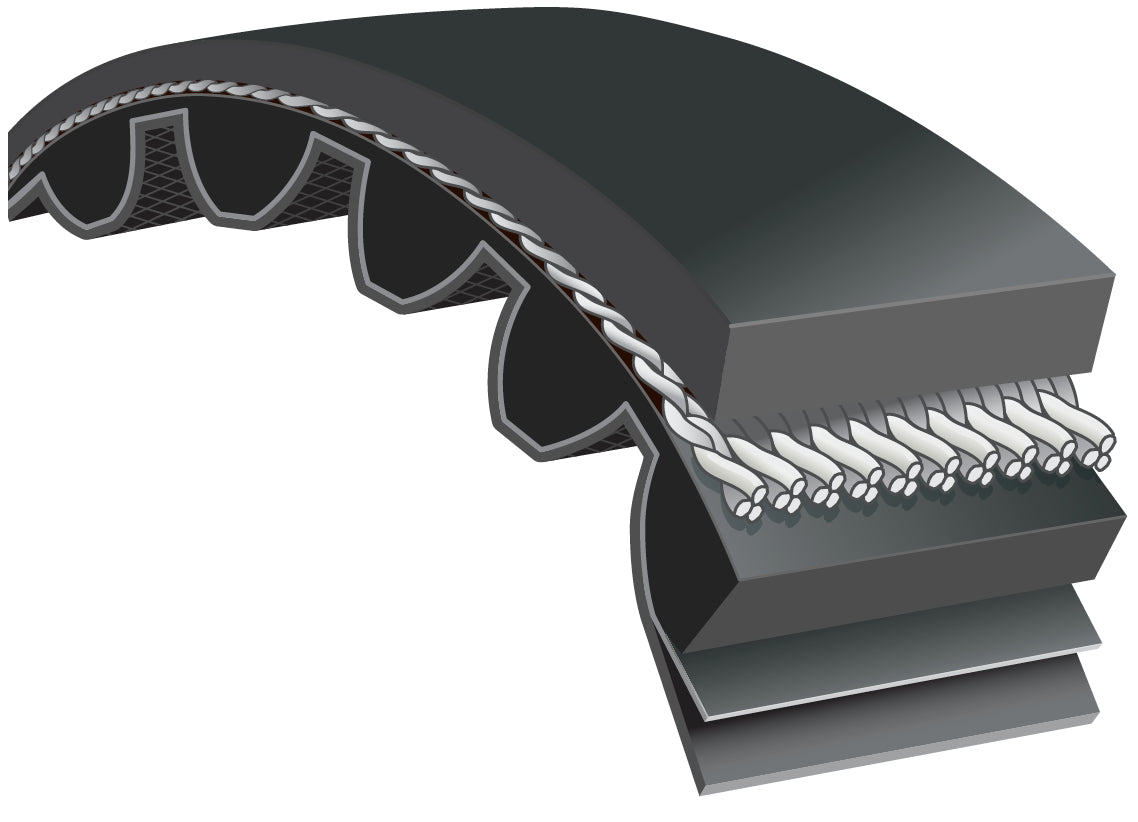

Bando - 1000-S8M-1480 HP Anticipating the demand for energy savings and higher horsepower transmission, Bando developed our High Performance STS (HPSTS) belt, utilizing our time-proven technology and experience.
- High durometer oil and heat resistant, static conductive synthetic rubber protect against tooth deformation, minimizing fatigue.
- Tooth canvas provides a low coefficient of friction, lowering noise levels.
- This HPSTS belt achieves exceptionally higher power transmission - up to 2 times as high as conventional STS belts.
- Higher HP transmission minimizes the width of the belt, making system design as compact as possible.
- The narrower width of the belt and pulleys results in a quieter running drive.
- Runs in standard stock STS pulleys.
- HPS 5M is only available in clean specification, minimizing rubber dust.
Additional Information
Price Class530
Weight (lbs)1.8204
Number of Teeth185
Tooth Pitch (In)0.315
Tooth Pitch (mm)8
Tooth ProfileS8M
Multiplier0.3392
Belt Width (In)3.937
Belt Width (mm)100
ColorBlack
Ribs/Teeth/Angle185
CordFiberglass
Height (In)0.2087
Height (mm)5.3
MaterialSynthetic Rubber
Nominal Outside Length (In)58.2677
Nominal Outside Length (mm)1480
CategoryIndustrial Belts
Country of originTW
Height5.3
Length1480
ManufacturerBando
Mpn1000-S8M-1480 HP
No of ribs185
SubcategoryTiming Belts
TypeSyncro-Link STS HP Neoprene (Metric)
Width100
