category:
Industrial Belts
country_of_origin:
TW
height:
2.2
length:
325
manufacturer:
Bando
mpn:
10T5-325UG
no_of_ribs:
65
subcategory:
Timing Belts
type:
Synchro-Link Standard Polyurethane (Metric)
width:
10
Product Description

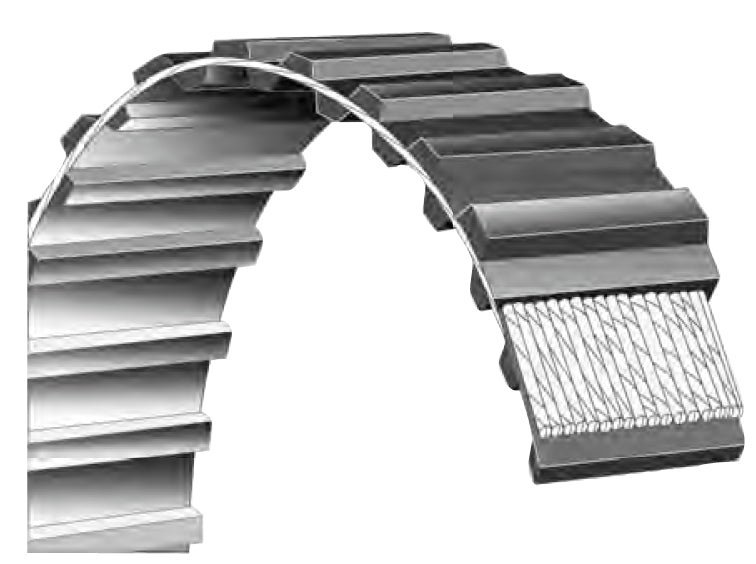

Bando - 10T5-325UG An ideal selection for serpentine drives where extremely clean, quiet operation is required. Precision molded to ensure mirror image top and bottom tooth alignment for precise symmetry and synchronization.
¢ Top quality oil and ozone resistant polyurethane provides clean running operation and exceptionally long belt life.
¢ Strong fiberglass cords assure length stability and stand up to high horsepower loads.
¢ Extremely clean operation makes these belts ideally suited for appliance and office equipment applications.
Additional Information
Price Class550
Weight (lbs)0.0132
Number of Teeth65
Tooth Pitch (In)0.1969
Tooth Pitch (mm)5
Tooth ProfileT5
Multiplier0.4556
Belt Width (In)0.394
Belt Width (mm)10
ColorSemi Translucent Amber
Ribs/Teeth/Angle65
CordFiberglass
Height (In)0.0866
Height (mm)2.2
MaterialPolyurethane
Nominal Outside Length (In)12.7953
Nominal Outside Length (mm)325
