category:
Industrial Belts
country_of_origin:
TW
height:
4.5
length:
560
manufacturer:
Bando
mpn:
15T10-560UG
no_of_ribs:
56
subcategory:
Timing Belts
type:
Synchro-Link Standard Polyurethane (Metric)
width:
15

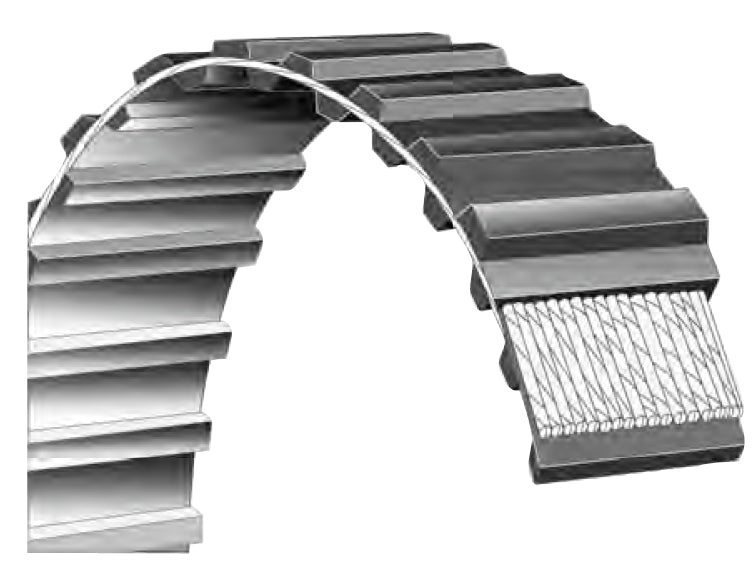

Product Description
Bando - 15T10-560UG An ideal selection for serpentine drives where extremely clean, quiet operation is required. Precision molded to ensure mirror image top and bottom tooth alignment for precise symmetry and synchronization.
¢ Top quality oil and ozone resistant polyurethane provides clean running operation and exceptionally long belt life.
¢ Strong fiberglass cords assure length stability and stand up to high horsepower loads.
¢ Extremely clean operation makes these belts ideally suited for appliance and office equipment applications.
Additional Information
Price Class550
Weight (lbs)0.0663
Number of Teeth56
Tooth Pitch (In)0.3937
Tooth Pitch (mm)10
Tooth ProfileT10
Multiplier0.4556
Belt Width (In)0.591
Belt Width (mm)15
ColorSemi Translucent Amber
Ribs/Teeth/Angle56
CordFiberglass
Height (In)0.1772
Height (mm)4.5
MaterialPolyurethane
Nominal Outside Length (In)22.0472
Nominal Outside Length (mm)560
