category:
Industrial Belts
country_of_origin:
TW
height:
4.5
length:
1000
manufacturer:
Bando
mpn:
16T10-1000UG
no_of_ribs:
100
subcategory:
Timing Belts
type:
Synchro-Link Standard Polyurethane (Metric)
width:
16
Product Description

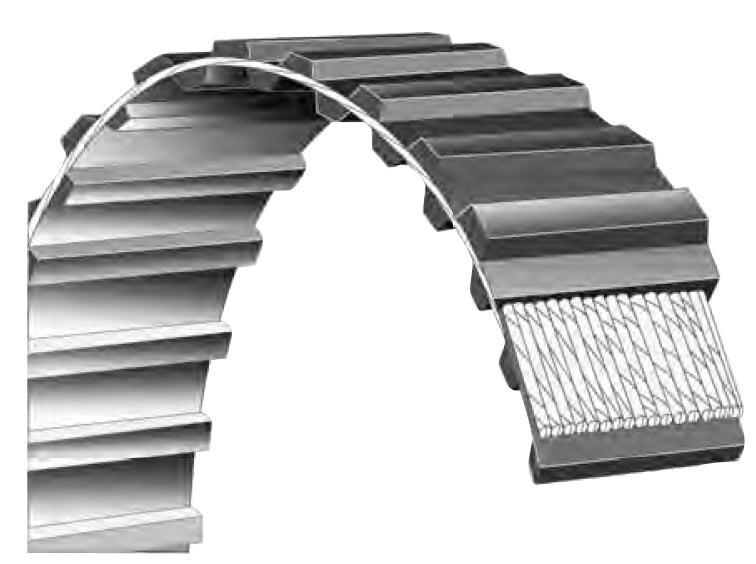

Bando - 16T10-1000UG An ideal selection for serpentine drives where extremely clean, quiet operation is required. Precision molded to ensure mirror image top and bottom tooth alignment for precise symmetry and synchronization.
¢ Top quality oil and ozone resistant polyurethane provides clean running operation and exceptionally long belt life.
¢ Strong fiberglass cords assure length stability and stand up to high horsepower loads.
¢ Extremely clean operation makes these belts ideally suited for appliance and office equipment applications.
Additional Information
Price Class550
Weight (lbs)0.1262
Number of Teeth100
Tooth Pitch (In)0.3937
Tooth Pitch (mm)10
Tooth ProfileT10
Multiplier0.4556
Belt Width (In)0.63
Belt Width (mm)16
ColorSemi Translucent Amber
Ribs/Teeth/Angle100
CordFiberglass
Height (In)0.1772
Height (mm)4.5
MaterialPolyurethane
Nominal Outside Length (In)39.3701
Nominal Outside Length (mm)1000
