category:
Industrial Belts
country_of_origin:
TW
height:
3.61
length:
670
manufacturer:
Bando
mpn:
200-S5M-670 HP
no_of_ribs:
134
subcategory:
Timing Belts
type:
Syncro-Link STS HP Neoprene (Metric)
width:
20
Product Description

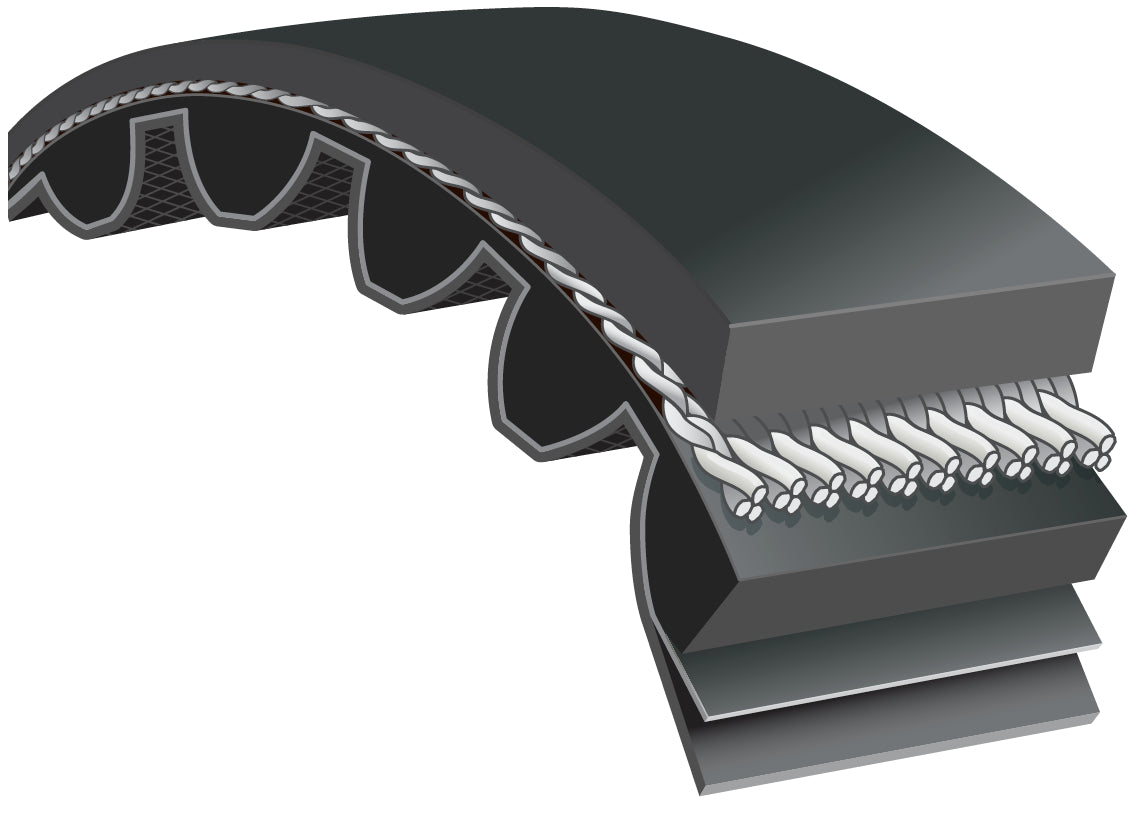

Bando - 200-S5M-670 HP Anticipating the demand for energy savings and higher horsepower transmission, Bando developed our High Performance STS (HPSTS) belt, utilizing our time-proven technology and experience.
- High durometer oil and heat resistant, static conductive synthetic rubber protect against tooth deformation, minimizing fatigue.
- Tooth canvas provides a low coefficient of friction, lowering noise levels.
- This HPSTS belt achieves exceptionally higher power transmission - up to 2 times as high as conventional STS belts.
- Higher HP transmission minimizes the width of the belt, making system design as compact as possible.
- The narrower width of the belt and pulleys results in a quieter running drive.
- Runs in standard stock STS pulleys.
- HPS 5M is only available in clean specification, minimizing rubber dust.
Additional Information
Price Class530
Weight (lbs)0.1032
Number of Teeth134
Tooth Pitch (In)0.1969
Tooth Pitch (mm)5
Tooth ProfileS5M
Multiplier0.3392
Belt Width (In)0.787
Belt Width (mm)20
ColorBlack
Ribs/Teeth/Angle134
CordFiberglass
Height (In)0.1421
Height (mm)3.61
MaterialSynthetic Rubber
Nominal Outside Length (In)26.378
Nominal Outside Length (mm)670
