category:
Industrial Belts
country_of_origin:
TW
height:
2.2
length:
1140
manufacturer:
Bando
mpn:
20T5-1140UG
no_of_ribs:
228
subcategory:
Timing Belts
type:
Synchro-Link Standard Polyurethane (Metric)
width:
20
Product Description

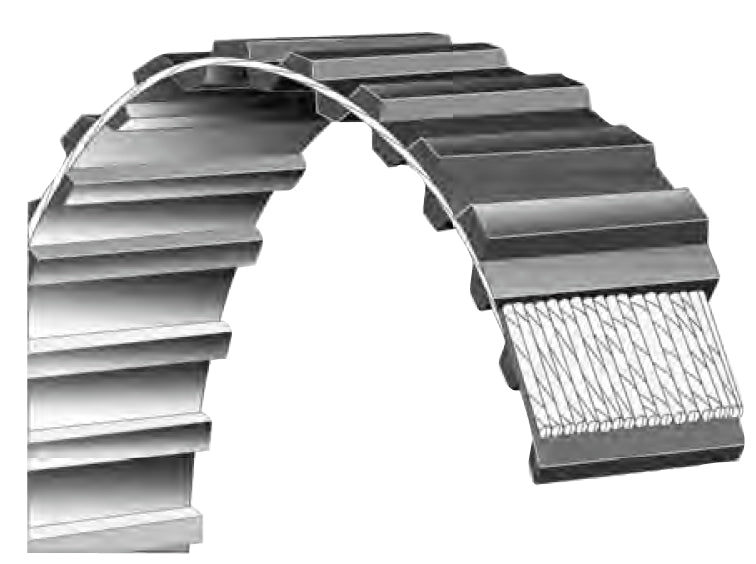

Bando - 20T5-1140UG An ideal selection for serpentine drives where extremely clean, quiet operation is required. Precision molded to ensure mirror image top and bottom tooth alignment for precise symmetry and synchronization.
¢ Top quality oil and ozone resistant polyurethane provides clean running operation and exceptionally long belt life.
¢ Strong fiberglass cords assure length stability and stand up to high horsepower loads.
¢ Extremely clean operation makes these belts ideally suited for appliance and office equipment applications.
Additional Information
Price Class550
Weight (lbs)0.0923
Number of Teeth228
Tooth Pitch (In)0.1969
Tooth Pitch (mm)5
Tooth ProfileT5
Multiplier0.4556
Belt Width (In)0.787
Belt Width (mm)20
ColorSemi Translucent Amber
Ribs/Teeth/Angle228
CordFiberglass
Height (In)0.0866
Height (mm)2.2
MaterialPolyurethane
Nominal Outside Length (In)44.8819
Nominal Outside Length (mm)1140
