Bando 250-DS8M-1600 Timing Belt

Bando 250-DS8M-1600 Timing Belt

Dropship

SKU SKU:kpi005-250-DS8M-1600

GTIN : 649717290962

MPN : 250-DS8M-1600

Regular price $62.53 USD
Regular price Sale price $62.53 USD
Sale Sold out
Shipping calculated at checkout.
View full details
  • 30-day returns
  • Fast shipping
  • Secure payments
  • Over 300,000 products
category: Industrial Belts
country_of_origin: TW
height: 7.3
length: 1600
manufacturer: Bando
mpn: 250-DS8M-1600
no_of_ribs: 200
subcategory: Timing Belts
type: Synchro-Link Double Sided Neoprene (Metric)
width: 25

Product Description

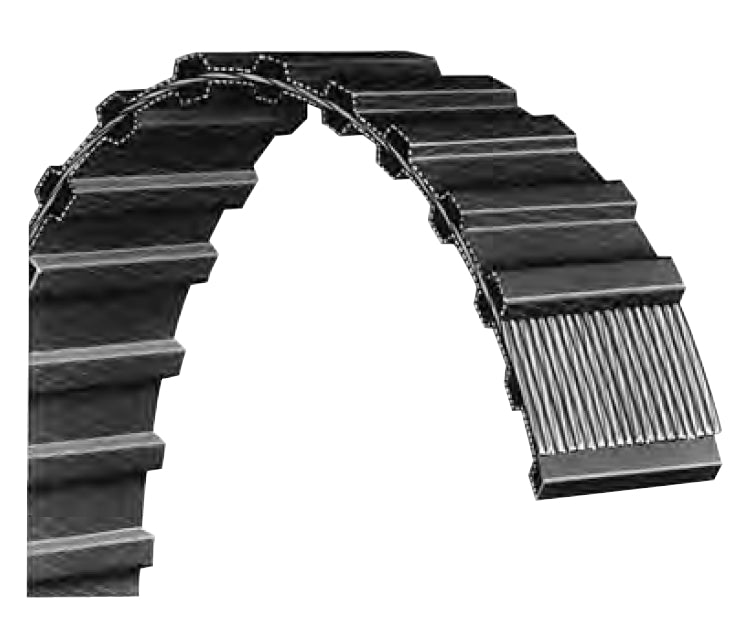

Bando - 250-DS8M-1600 Synchro-Link® Double Sided Timing Belts provide smooth, precise performance under exacting drive conditions in serpentine drives common in printing, textile and packaging machinery. precision molding process assures "mirror-image" symmetry, so both sides of the belt mesh with the pulley properly and provide maximum belt life.

¢ Flexible neoprene body resists oil, heat, ozone, grease, and moisture for maximum belt life.

¢ Strong, helically-wound fiberglass cords won't stretch or fatigue under high horsepower loads.

¢ Durable precision formed teeth engage pulley grooves exactly for accurate synchronization from both sides of the belt.

¢ Tough nylon fabric on both sides of the belt protects teeth against wear and abrasion. Low coefficient of friction provides smooth running characteristics.

Additional Information

Price Class535
Weight (lbs)0.52
Number of Teeth200
Tooth Pitch (In)0.315
Tooth Pitch (mm)8
Tooth ProfileDS8M
Multiplier0.6782
Belt Width (In)0.984
Belt Width (mm)25
ColorBlack
Ribs/Teeth/Angle200
CordFiberglass
Height (In)0.2874
Height (mm)7.3
MaterialNeoprene
Nominal Outside Length (In)62.9921
Nominal Outside Length (mm)1600
