category:
Industrial Belts
country_of_origin:
TW
height:
4.8
length:
1056
manufacturer:
Bando
mpn:
250-KPS8M-1056
no_of_ribs:
132
subcategory:
Timing Belts
type:
Synchro-Link KPS Polyurethane (Metric)
width:
25
Product Description

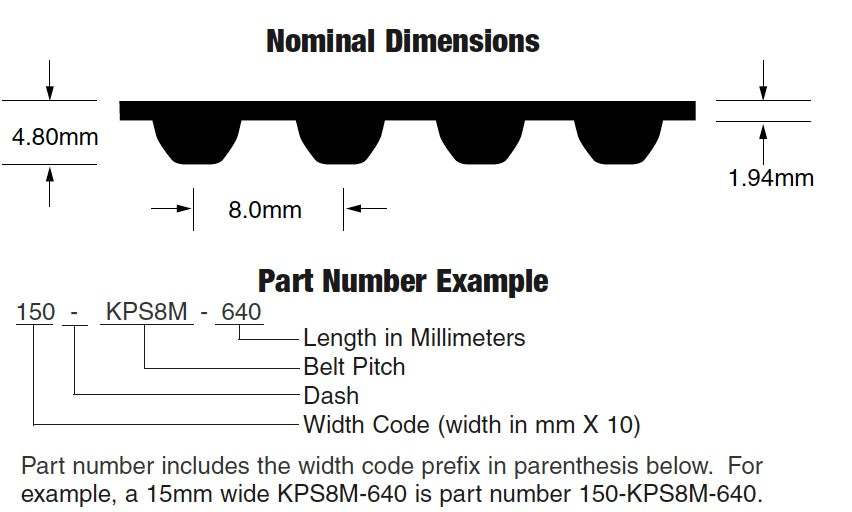

Bando - 250-KPS8M-1056 Utilizing high modulus aramid cords and the unique blue polyurethane body, the KPS II is the belt of choice for the applications requiring exceptional power transmission capabilities, particularly on lower speed-high torque drives.
- The KPS II belt transmits up to 5 times more power thana standard STS belt. This allows the same power transmission capacity to be achieved using narrower or smaller diameter pulleys, saving space and money.
- Wear-resistant polyurethane construction reduces rubber dust.
- Available in 8mm and 14 mm pitch.
- Utilize standard STS pulleys for a wide range of speed ratios.
Additional Information
Price Class551
Weight (lbs)0.2244
Number of Teeth132
Tooth Pitch (In)0.315
Tooth Pitch (mm)8
Tooth ProfileKPS8M
Multiplier0.4844
Belt Width (In)0.984
Belt Width (mm)25
ColorBlue
Ribs/Teeth/Angle132
CordAramid
Height (In)0.189
Height (mm)4.8
MaterialPolyurethane
Nominal Outside Length (In)41.5748
Nominal Outside Length (mm)1056
