category:
Industrial Belts
country_of_origin:
TW
height:
4.8
length:
760
manufacturer:
Bando
mpn:
250-KPS8M-760
no_of_ribs:
95
subcategory:
Timing Belts
type:
Synchro-Link KPS Polyurethane (Metric)
width:
25
Product Description

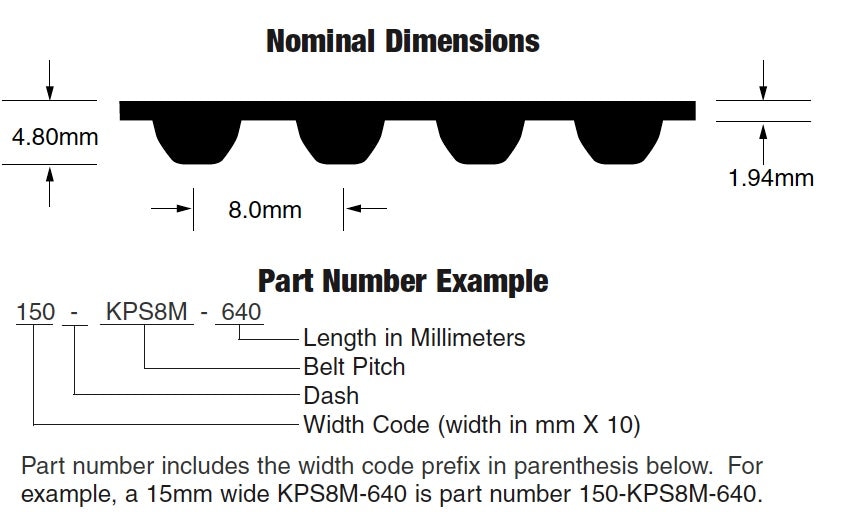

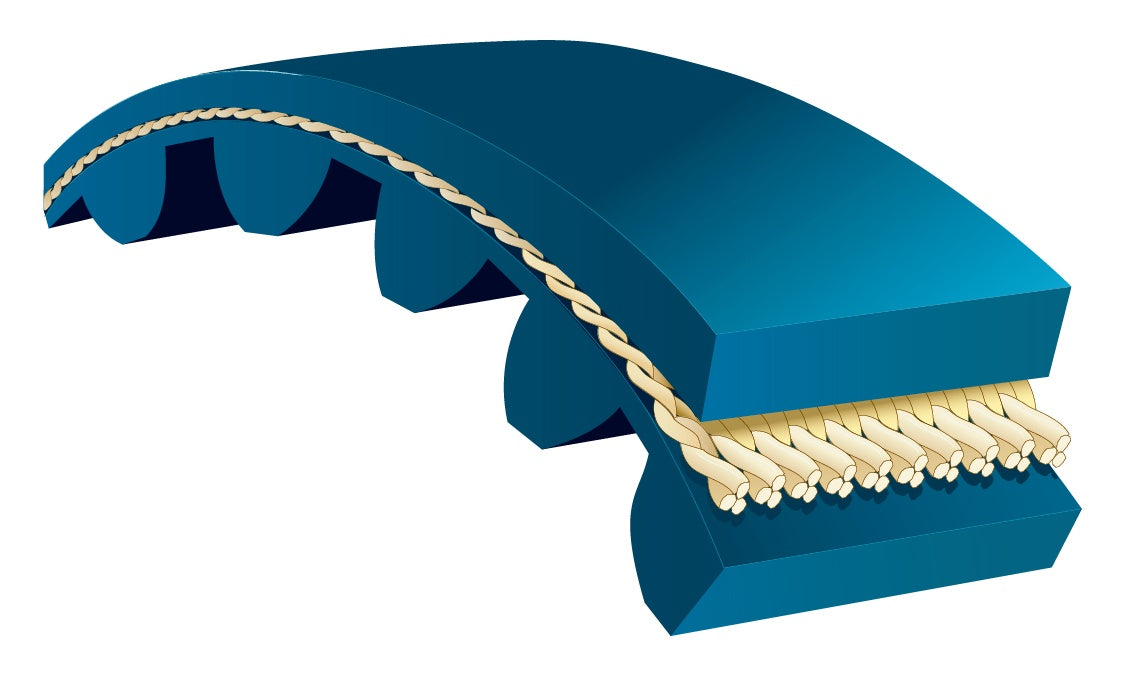

Bando - 250-KPS8M-760 Utilizing high modulus aramid cords and the unique blue polyurethane body, the KPS II is the belt of choice for the applications requiring exceptional power transmission capabilities, particularly on lower speed-high torque drives.
- The KPS II belt transmits up to 5 times more power thana standard STS belt. This allows the same power transmission capacity to be achieved using narrower or smaller diameter pulleys, saving space and money.
- Wear-resistant polyurethane construction reduces rubber dust.
- Available in 8mm and 14 mm pitch.
- Utilize standard STS pulleys for a wide range of speed ratios.
Additional Information
Price Class551
Weight (lbs)0.1615
Number of Teeth95
Tooth Pitch (In)0.315
Tooth Pitch (mm)8
Tooth ProfileKPS8M
Multiplier0.4844
Belt Width (In)0.984
Belt Width (mm)25
ColorBlue
Ribs/Teeth/Angle95
CordAramid
Height (In)0.189
Height (mm)4.8
MaterialPolyurethane
Nominal Outside Length (In)29.9213
Nominal Outside Length (mm)760
