category:
Industrial Belts
country_of_origin:
TW
height:
0.55
length:
62.5
manufacturer:
Bando
mpn:
2926V616
no_of_ribs:
26
subcategory:
V-Belts
type:
Power Max Variable Speed
width:
1.8125
Product Description

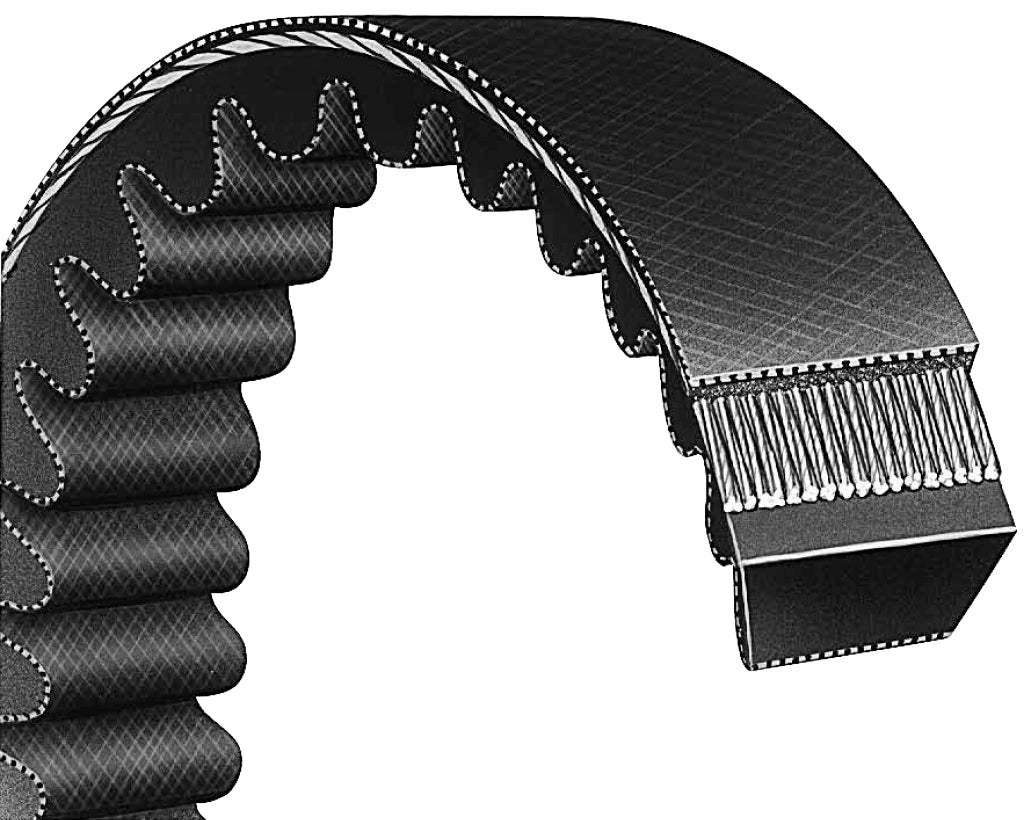

Bando - 2926V616 Power Max® Variable Speed Belts
extreme crosswise rigidity
As Power Max® belts are wide in proportion to their thickness, they must have extreme crosswise rigidity to keep them from dishing in.
This dishing would cause the tensile cords to become misaligned, leading to uneven speed control and excessive wear on the cords, causing premature failure.
- Power Max® belts provide lengthwise flexibility to bend around small sheave diameters without excess strain that would shorten belt life.
- Tough polyester cords won™t fatigue, even with repeated shock loads. Cords are specially treated to resist stretch and carry high horsepower loads.
- Transversely aligned fiber reinforcement in the belt cogs assures crosswise rigidity and flexibility to reduce heat build-up and minimize cracking.
- Meets ARPM standards for oil and heat resistance and static conductivity.
Click here to find an authorized Bando distributor or call (800) 829-6612.
Additional Information
Price Class609
Weight (lbs)2.1647
Multiplier0.6392
Belt Width (In)1.8125
Belt Width (mm)46
ColorBlack
Ribs/Teeth/Angle26
Height (In)0.55
Height (mm)14
Nominal Outside Length (In)62.5
Nominal Outside Length (mm)1587.5
Side Wall Angle V/S Only26
