category:
Industrial Belts
country_of_origin:
TW
height:
5.3
length:
1650
manufacturer:
Bando
mpn:
3-7MS1650
no_of_ribs:
3
subcategory:
V-Belts
type:
Banflex Combo Metric-V Polyurethane
width:
24.1
Product Description

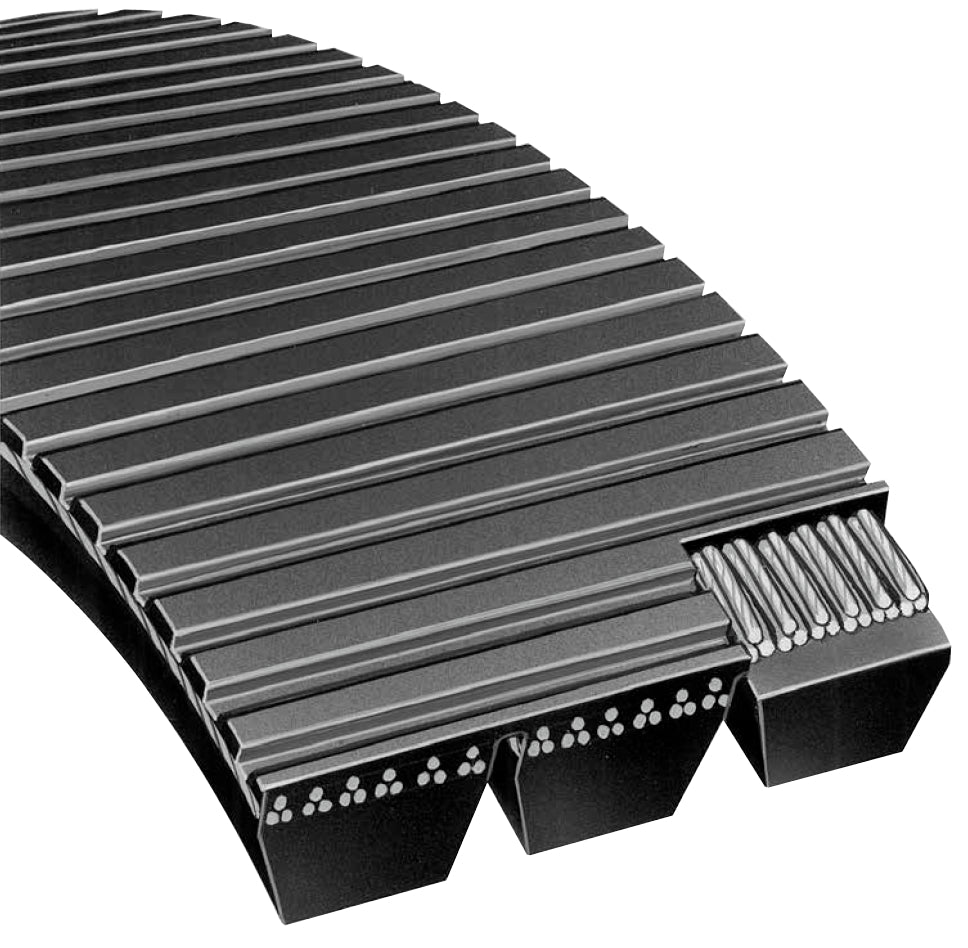

Bando - 3-7MS1650 Ideally suited for short center distances and small diameter pulleys, BanFlex® Combos™ banded construction minimizes or eliminates the turnover problem normally associated with small cross section belts. The ribbed construction provides superior flexibility while maintaining lateral stability.
- Precision molded, seamless polyurethane ribs provide maximum resistance to oil and traditional lubricants with virtually vibration free operation.
- Treated polyester tensile cords resist fatigue and stretch as well as providing exceptional length stability and drive uniformity.
- Polyamid tie band prevents belt whip under impulse loads.
- Polyurethane ribs on the back of the belt provide rigidity across the width of the belt and dissipate heat, leading to longer belt life.
Additional Information
Price Class621
Weight (lbs)0.3772
Multiplier0.3732
Belt Width (In)0.949
Belt Width (mm)24.1
ColorBlack
Ribs/Teeth/Angle3
Height (In)0.2087
Height (mm)5.3
Nominal Outside Length (In)64.9606
Nominal Outside Length (mm)1650
Section7M
Number of Ribs3
