category:
Industrial Belts
country_of_origin:
TW
height:
0.63
length:
85.88
manufacturer:
Bando
mpn:
3C81
no_of_ribs:
3
subcategory:
V-Belts
type:
Power King Combo Classical
width:
3
Product Description

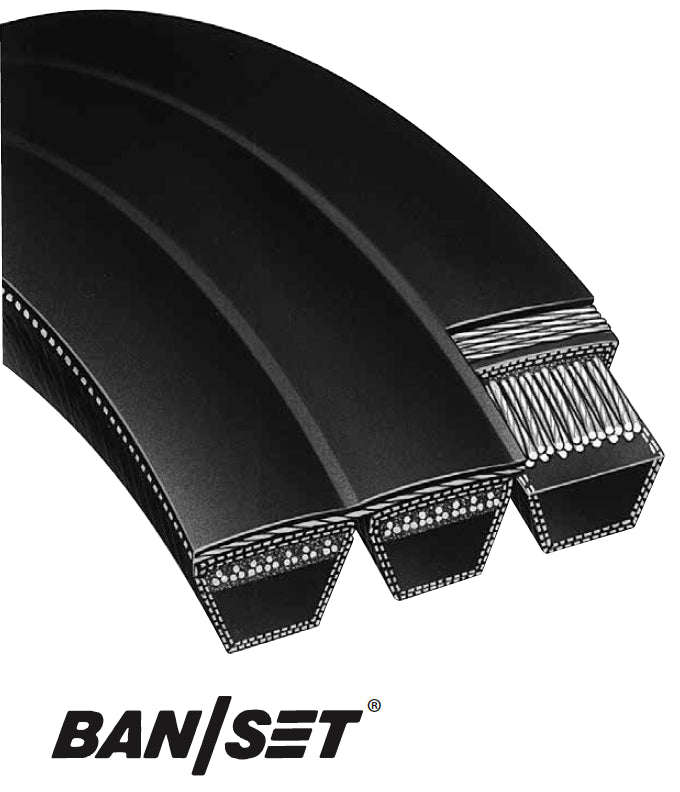

Bando - 3C81 To resolve problem applications where belts are flipping over or jumping out of the sheaves, utilize Bando™s series of Combo belts. The tie band assures lateral rigidity and guides the belts into the sheave grooves.
- The tie band, reinforced with high strength transverse tensile cords, is fully oil and heat resistant and permanently welds the individual belts together.
- Combos utilize the premium quality Power King® and Power Ace® belts, with all of their features and benefits.
- Assures equal load distribution in drives where high shock or pulsating loads cause belts to whip, flip over or jump out of the sheave grooves.
- Combos are ideal for use on vertical shaft drives.
- Meets ARPM standards for oil and heat resistance and static conductivity.
Additional Information
Price Class601
Weight (lbs)7.047
Multiplier0.6377
Belt Width (In)3
Belt Width (mm)76.2
ColorBlack
Ribs/Teeth/Angle3
Height (In)0.63
Height (mm)16
Nominal Outside Length (In)85.88
Nominal Outside Length (mm)2181.4
SectionC
Number of Ribs3
