category:
Industrial Belts
country_of_origin:
TW
height:
0.32
length:
43
manufacturer:
Bando
mpn:
3V430
subcategory:
V-Belts
type:
Power Ace Narrow
width:
0.38
Product Description

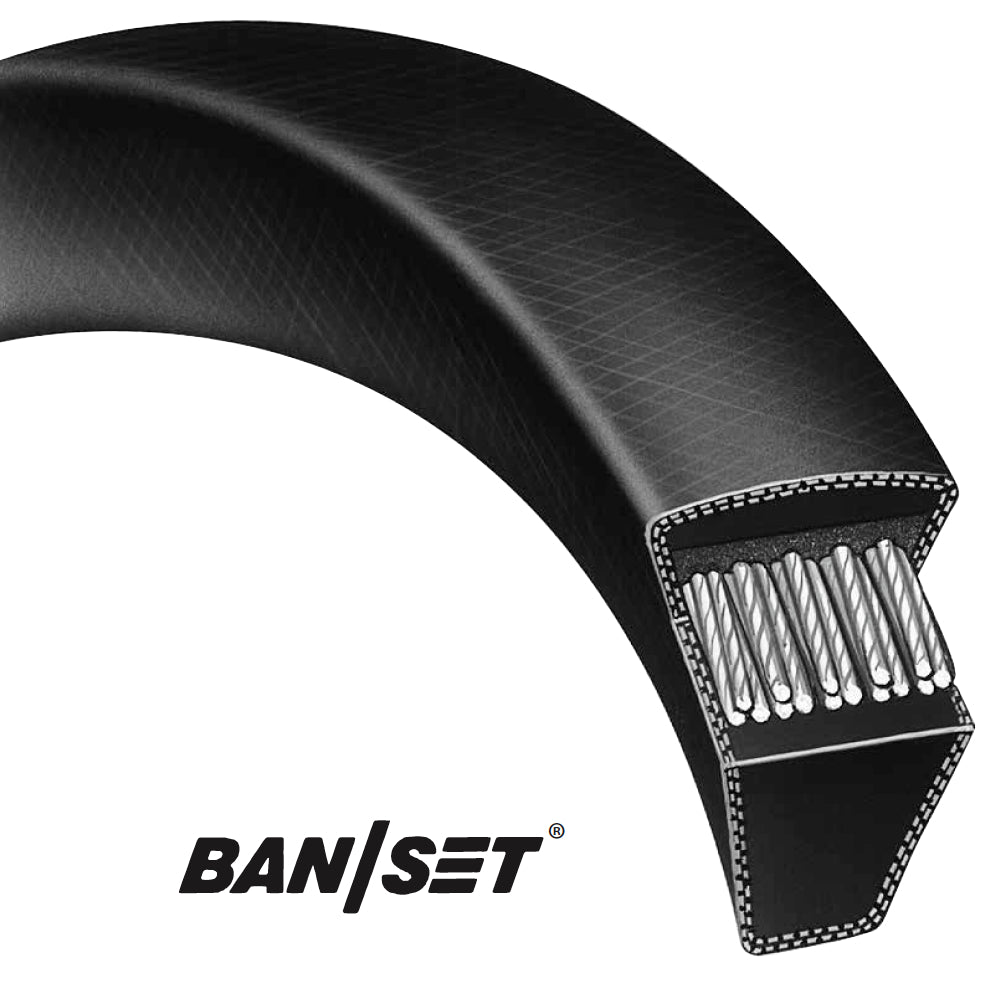

Bando - 3V430 Power Ace® narrow profile V-belt transmits power more efficiently and effectively, delivering higher horsepower ratings than classical cross section belts. Power Ace® should be considered for any new drive application, as they can transmit the same load as classical belts in 1/2 to 2/3 the space.
- The special bias-cut angle of the cover fabric reduces stress as the belt bends around sheaves, lowering heat build-up that shortens belt life.
- Extra strong polyester cords are treated for fatigue, stretch resistance, and adhesion to assure the longest possible belt life.
- The rubber compound of the body is engineered to maintain structural uniformity while maintaining the flexibility to reduce heat build-up.
- Meets ARPM standards for oil and heat resistance and static conductivity.
Additional Information
Price Class605
Weight (lbs)0.215
Multiplier0.531
Belt Width (In)0.38
Belt Width (mm)9.7
ColorBlack
Ribs/Teeth/Angle0
Height (In)0.32
Height (mm)8.1
Nominal Outside Length (In)43
Nominal Outside Length (mm)1092.2
Section3V
