Bando

Bando 400-DS14M-1610 Timing Belt

Bando 400-DS14M-1610 Timing Belt

Dropship

SKU SKU:kpi005-400-DS14M-1610

GTIN : 649717292898

MPN : 400-DS14M-1610

Regular price $114.99 USD
Regular price Sale price $114.99 USD
Sale Sold out
Shipping calculated at checkout.
View full details
  • 30-day returns
  • Fast shipping
  • Secure payments
  • Over 300,000 products
category: Industrial Belts
country_of_origin: TW
height: 12.85
length: 1610
manufacturer: Bando
mpn: 400-DS14M-1610
no_of_ribs: 115
subcategory: Timing Belts
type: Synchro-Link Double Sided Neoprene (Metric)
width: 40

Product Description

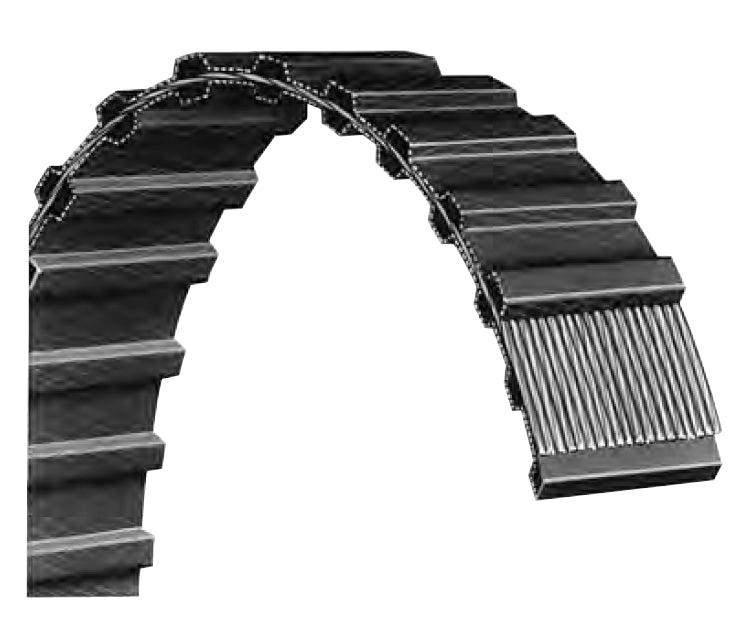

Bando - 400-DS14M-1610 Synchro-Link® Double Sided Timing Belts provide smooth, precise performance under exacting drive conditions in serpentine drives common in printing, textile and packaging machinery. precision molding process assures "mirror-image" symmetry, so both sides of the belt mesh with the pulley properly and provide maximum belt life.

¢ Flexible neoprene body resists oil, heat, ozone, grease, and moisture for maximum belt life.

¢ Strong, helically-wound fiberglass cords won't stretch or fatigue under high horsepower loads.

¢ Durable precision formed teeth engage pulley grooves exactly for accurate synchronization from both sides of the belt.

¢ Tough nylon fabric on both sides of the belt protects teeth against wear and abrasion. Low coefficient of friction provides smooth running characteristics.

Additional Information

Price Class535
Weight (lbs)1.4812
Number of Teeth115
Tooth Pitch (In)0.5512
Tooth Pitch (mm)14
Tooth ProfileDS14M
Multiplier0.6782
Belt Width (In)1.575
Belt Width (mm)40
ColorBlack
Ribs/Teeth/Angle115
CordFiberglass
Height (In)0.5059
Height (mm)12.85
MaterialNeoprene
Nominal Outside Length (In)63.3858
Nominal Outside Length (mm)1610
