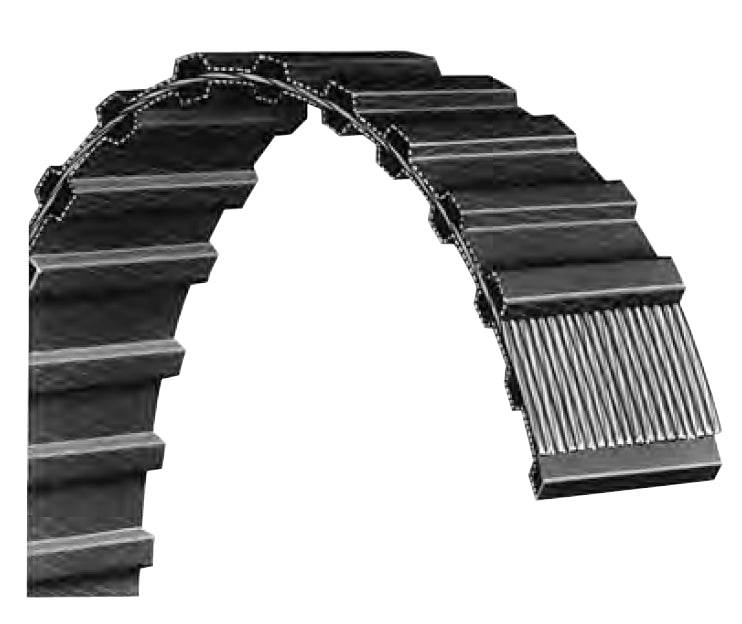

Bando 400-DS14M-3556 Timing Belt

Bando 400-DS14M-3556 Timing Belt

Dropship

SKU kpi005-400-DS14M-3556

GTIN : 649717293857

MPN : 400-DS14M-3556

$196.80 USD
$196.80 USD
Sale Sold out
Shipping calculated at checkout.
View full details
  • 30-day returns
  • Fast shipping
  • Secure payments
  • Over 300,000 products
category: Industrial Belts
country_of_origin: TW
height: 12.85
length: 3556
manufacturer: Bando
mpn: 400-DS14M-3556
no_of_ribs: 254
subcategory: Timing Belts
type: Synchro-Link Double Sided Neoprene (Metric)
width: 40

Product Description

Bando - 400-DS14M-3556 Synchro-Link® Double Sided Timing Belts provide smooth, precise performance under exacting drive conditions in serpentine drives common in printing, textile and packaging machinery. precision molding process assures "mirror-image" symmetry, so both sides of the belt mesh with the pulley properly and provide maximum belt life.

¢ Flexible neoprene body resists oil, heat, ozone, grease, and moisture for maximum belt life.

¢ Strong, helically-wound fiberglass cords won't stretch or fatigue under high horsepower loads.

¢ Durable precision formed teeth engage pulley grooves exactly for accurate synchronization from both sides of the belt.

¢ Tough nylon fabric on both sides of the belt protects teeth against wear and abrasion. Low coefficient of friction provides smooth running characteristics.

Additional Information

Price Class535
Weight (lbs)3.2715
Number of Teeth254
Tooth Pitch (In)0.5512
Tooth Pitch (mm)14
Tooth ProfileDS14M
Multiplier0.6782
Belt Width (In)1.575
Belt Width (mm)40
ColorBlack
Ribs/Teeth/Angle254
CordFiberglass
Height (In)0.5059
Height (mm)12.85
MaterialNeoprene
Nominal Outside Length (In)140
Nominal Outside Length (mm)3556
