category:
Industrial Belts
country_of_origin:
TW
height:
10.2
length:
2660
manufacturer:
Bando
mpn:
400-S14M-2660 HP
no_of_ribs:
190
subcategory:
Timing Belts
type:
Syncro-Link STS HP Neoprene (Metric)
width:
40
Product Description

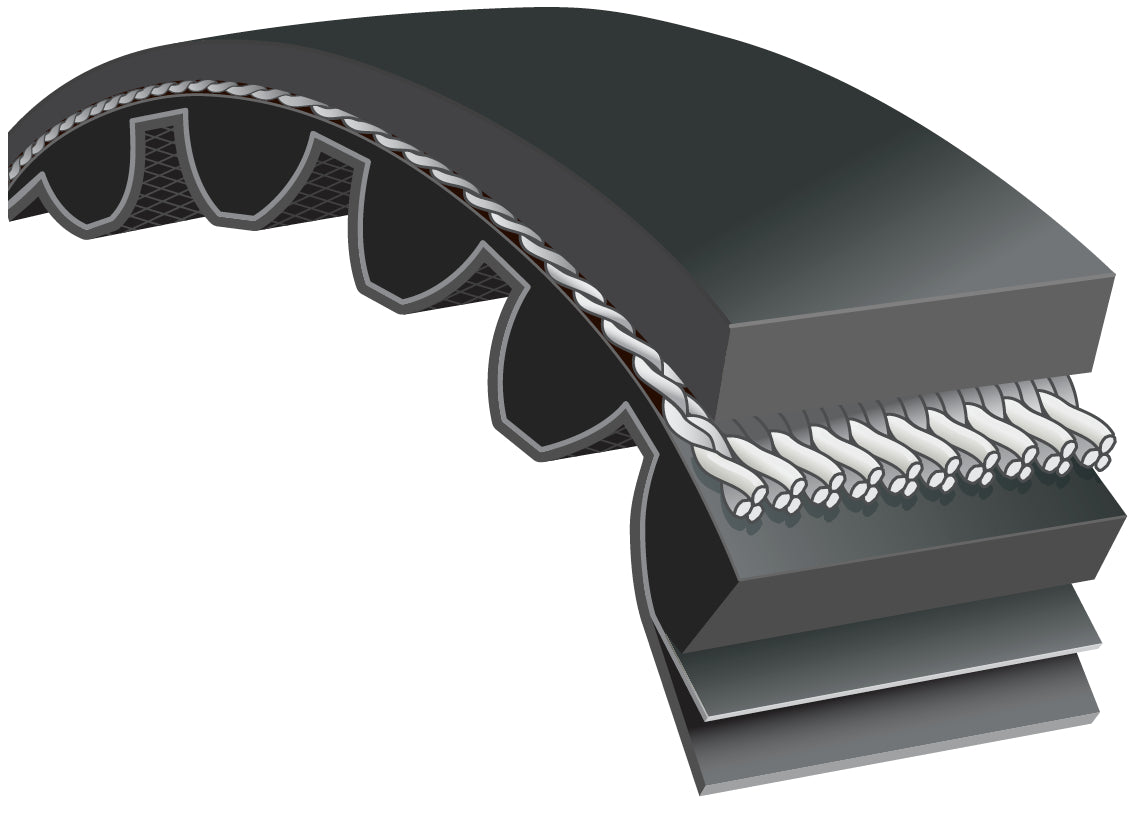

Bando - 400-S14M-2660 HP Anticipating the demand for energy savings and higher horsepower transmission, Bando developed our High Performance STS (HPSTS) belt, utilizing our time-proven technology and experience.
- High durometer oil and heat resistant, static conductive synthetic rubber protect against tooth deformation, minimizing fatigue.
- Tooth canvas provides a low coefficient of friction, lowering noise levels.
- This HPSTS belt achieves exceptionally higher power transmission - up to 2 times as high as conventional STS belts.
- Higher HP transmission minimizes the width of the belt, making system design as compact as possible.
- The narrower width of the belt and pulleys results in a quieter running drive.
- Runs in standard stock STS pulleys.
- HPS 5M is only available in clean specification, minimizing rubber dust.
Additional Information
Price Class530
Weight (lbs)2.0854
Number of Teeth190
Tooth Pitch (In)0.5512
Tooth Pitch (mm)14
Tooth ProfileS14M
Multiplier0.3392
Belt Width (In)1.575
Belt Width (mm)40
ColorBlack
Ribs/Teeth/Angle190
CordFiberglass
Height (In)0.4016
Height (mm)10.2
MaterialSynthetic Rubber
Nominal Outside Length (In)104.7244
Nominal Outside Length (mm)2660
