category:
Industrial Belts
country_of_origin:
TW
height:
0.138
length:
43.88
manufacturer:
Bando
mpn:
439L075G
no_of_ribs:
117
subcategory:
Timing Belts
type:
Synchro-Link Standard Neoprene (RMA)
width:
0.75
Product Description

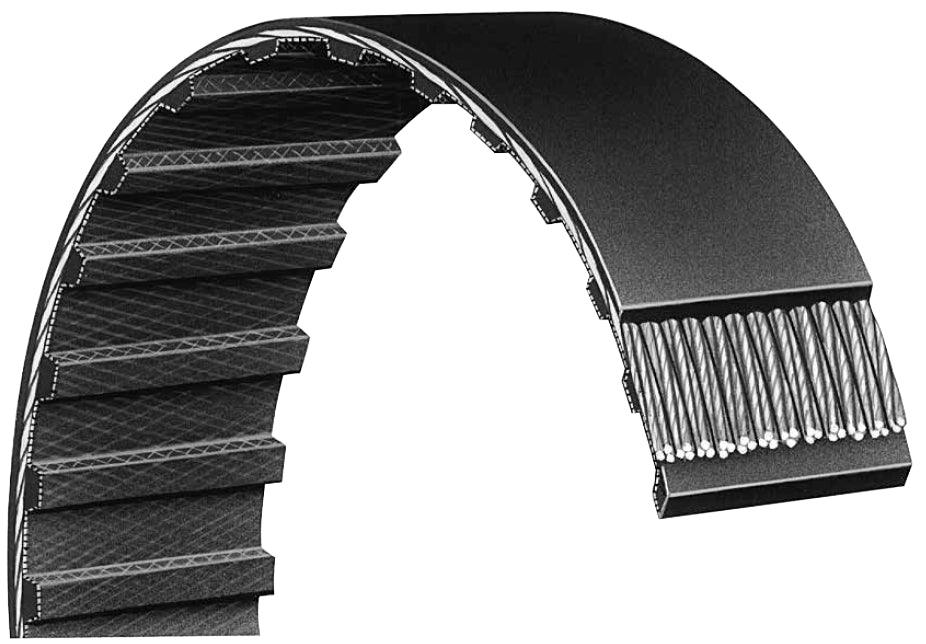

Bando - 439L075G The extra durable, highly flexible neoprene backing provides excellent abrasion and wear resistance ” especially important if power is transmitted from the back of the belt. Backing also guards the tensile cords against oil, grease, dirt, and moisture.
- Continuous, helically-wound high strength fiberglass tensile cords guarantee dimensional stability to eliminate take-up adjustments. Heavy torque loads won™t fatigue this super strong cord. S and Z orientation of the cords aid in minimizing belt tracking problems.
- Precision formed, oil and heat resistant neoprene teeth have a shear resistance equal to the tensile strength of the belt (under standard 6 teeth in mesh tests). Tooth design and tight manufacturing tolerances provide full surface contact between belt and pulley for smooth running characteristics.
- The tooth surface is protected by a low friction, clean running, wear resistant woven nylon facing. Seamless construction eliminates vibration.
Additional Information
Price Class502
Weight (lbs)0.1613
Number of Teeth117

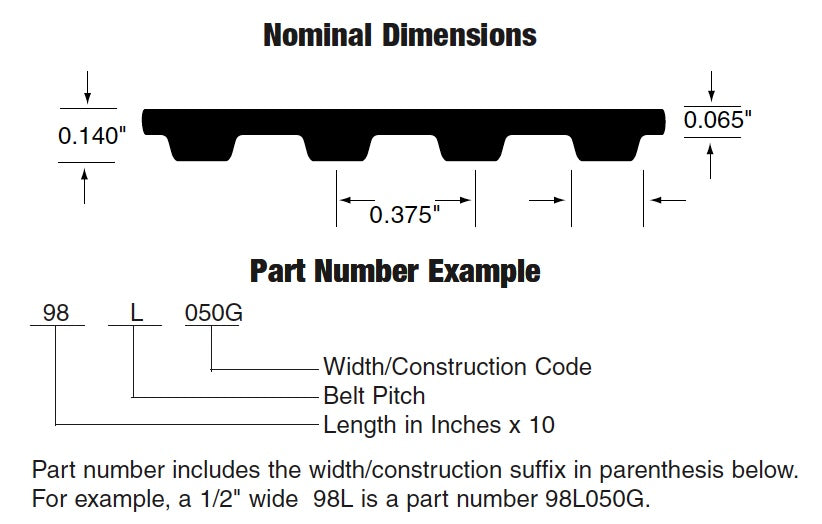

Tooth Pitch (In)0.375
Tooth Pitch (mm)9.5
Tooth ProfileL
Multiplier0.3419
Belt Width (In)0.75
Belt Width (mm)19.1
ColorBlack
Ribs/Teeth/Angle117
CordFiberglass
Height (In)0.14
Height (mm)3.6
MaterialNeoprene
Nominal Outside Length (In)43.88
Nominal Outside Length (mm)1114.6
