category:
Industrial Belts
country_of_origin:
TW
height:
3
length:
775
manufacturer:
Bando
mpn:
5M775
subcategory:
V-Belts
type:
Banflex Metric-V Polyurethane
width:
5
Product Description

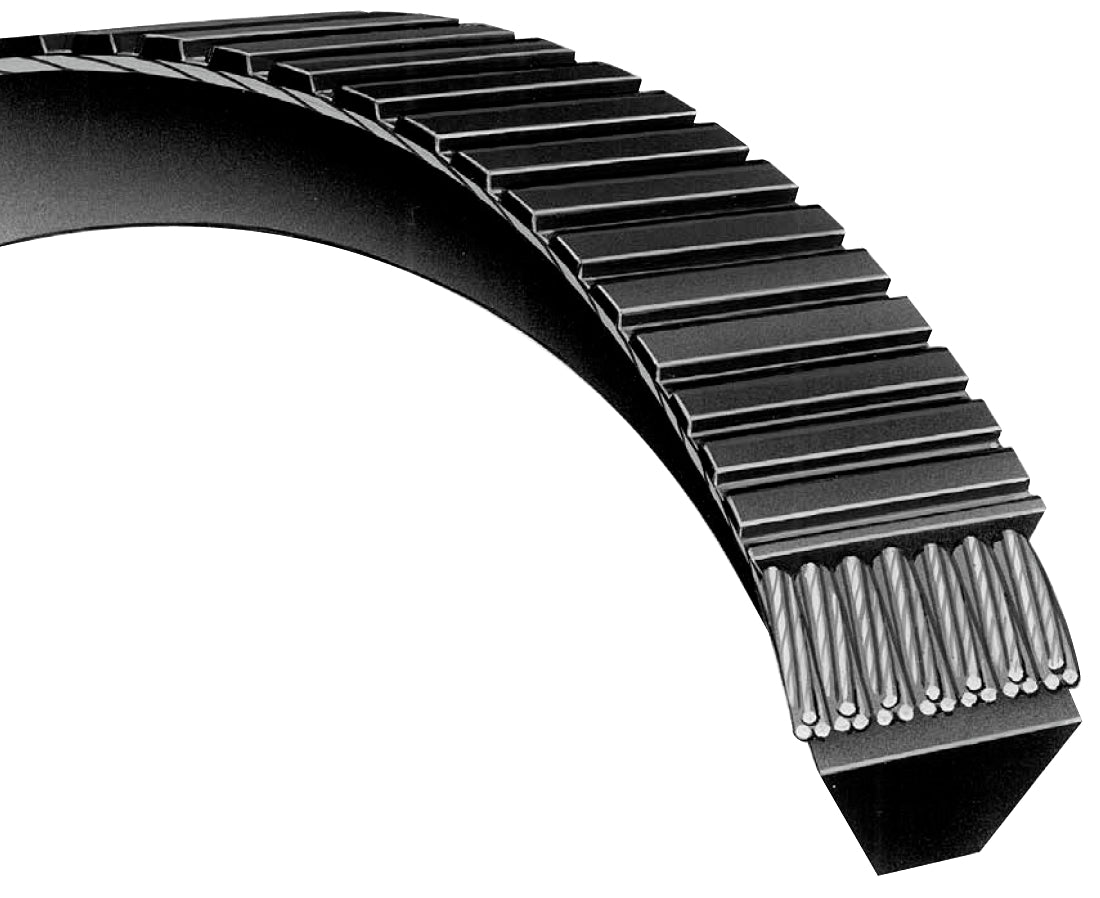

Bando - 5M775 The small cross-section of the BanFlex® belts makes them the preferred choice where short center distances and small diameter sheaves are required on compact equipment designs. The 60° sidewall angle and precision molded, seamless construction allows for precise belt-to-sheave meshing in high-speed applications up to 10,000 RPM.
- Precision cast, seamless polyurethane body for maximum power transmission capability at high speeds.
- Polyester tensile member is treated to ensure length stability and ensure superior resistance to fatigue.
- Polyurethane ribs dissipate heat and assure lateral rigidity while providing longitudinal flexibility.
Additional Information
Price Class621
Weight (lbs)0.024
Multiplier0.3732

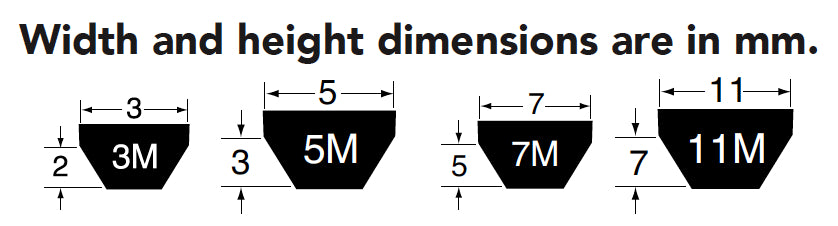

Belt Width (In)0.197
Belt Width (mm)5
ColorBlack
Ribs/Teeth/Angle0
Height (In)0.1181
Height (mm)3
Nominal Outside Length (In)30.5118
Nominal Outside Length (mm)775
Section5M
