category:
Industrial Belts
country_of_origin:
TW
height:
1.4
length:
380
manufacturer:
Bando
mpn:
60-S2M-380UK
no_of_ribs:
190
subcategory:
Timing Belts
type:
Synchro-Link STS Polyurethane (Metric)
width:
6
Product Description

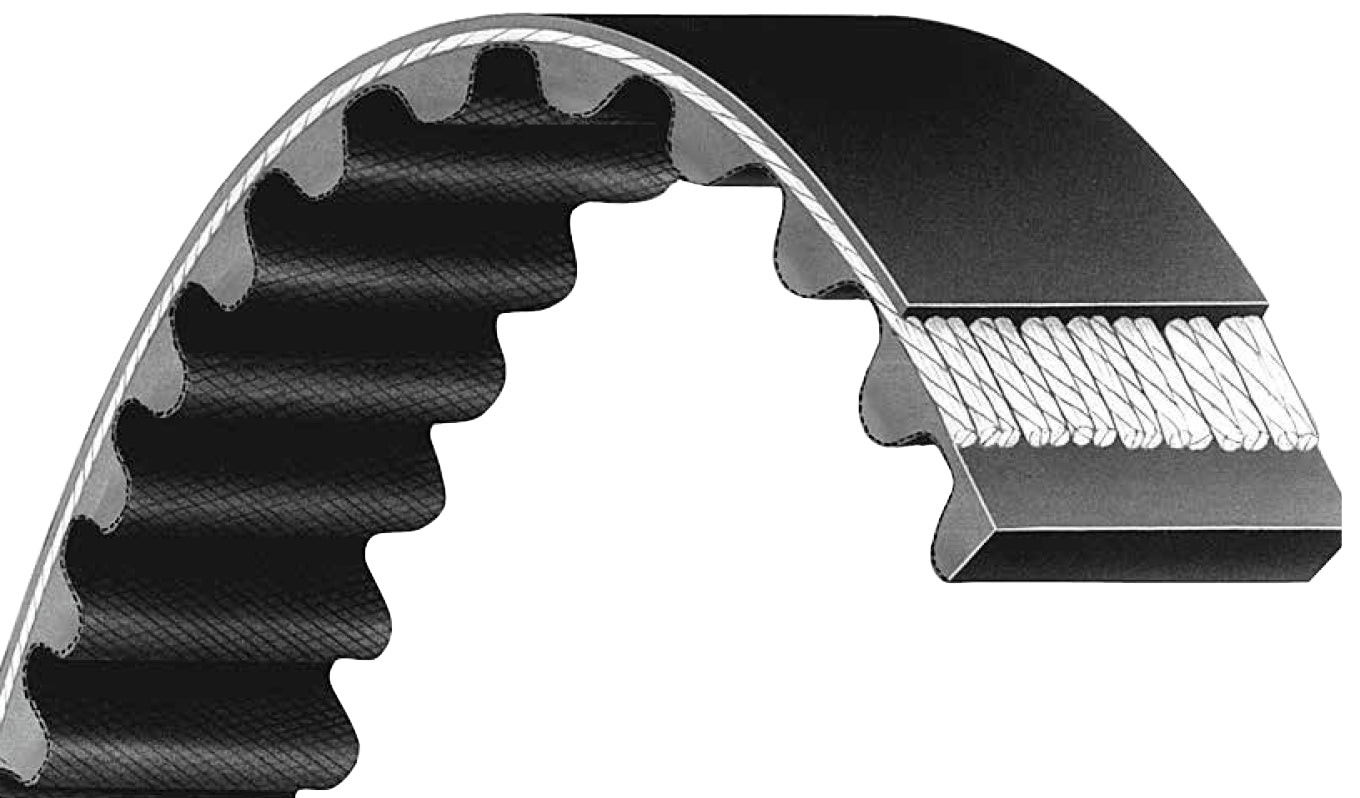

Bando - 60-S2M-380UK Unique modified curvilinear tooth form enables the STS belt to transmit greater loads than like-sized drives having the standard high torque tooth profile.
- Smoother tooth engagement and direct contact of belt tooth top with the pulley grooves enables the belt to run quietly - even at high speeds.
- As the tooth meshes with the pulley grooves, the cord lay forms an almost true circle, minimizing the cantilever effect on the cords, resulting in reduced bending fatigue and longer service life.
- No lubrication or re-tensioning required.
- Higher HP transmission capability can decrease the belt and pulley width, reducing the drive space envelope, resulting in a more compact machine design.
We recommend our Bando Ceptor-X High-Torque Carbon Cord STS Belt
Additional Information
Price Class550
Weight (lbs)0.0062
Number of Teeth190
Tooth Pitch (In)0.0787
Tooth Pitch (mm)2
Tooth ProfileS2M
Multiplier0.4556
Belt Width (In)0.236
Belt Width (mm)6
ColorBlack
Ribs/Teeth/Angle190
CordAramid
Height (In)0.0516
Height (mm)1.31
MaterialPolyurethane
Nominal Outside Length (In)14.9606
Nominal Outside Length (mm)380
