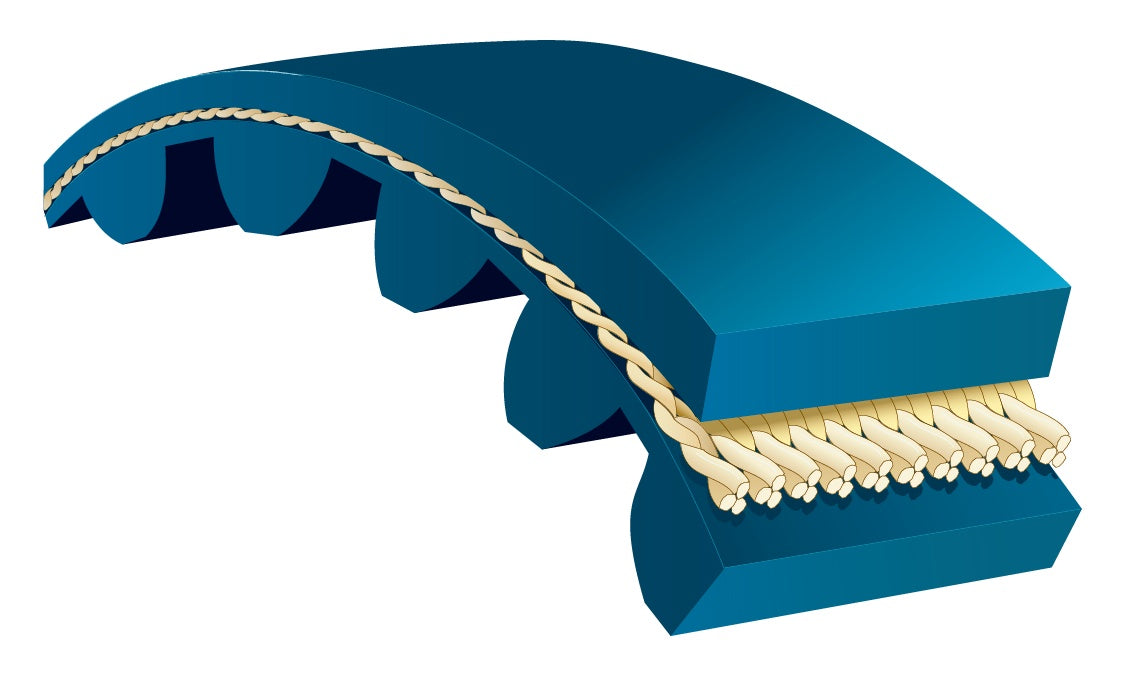

Bando - 600-KPS14M-1120 Utilizing high modulus aramid cords and the unique blue polyurethane body, the KPS II is the belt of choice for the applications requiring exceptional power transmission capabilities, particularly on lower speed-high torque drives.
- The KPS II belt transmits up to 5 times more power thana standard STS belt. This allows the same power transmission capacity to be achieved using narrower or smaller diameter pulleys, saving space and money.
- Wear-resistant polyurethane construction reduces rubber dust.
- Available in 8mm and 14 mm pitch.
- Utilize standard STS pulleys for a wide range of speed ratios.
Additional Information
Price Class551
Weight (lbs)0.9744
Number of Teeth80
Tooth Pitch (In)0.5512
Tooth Pitch (mm)14
Tooth ProfileKPS14M
Multiplier0.4844
Belt Width (In)2.362
Belt Width (mm)60
ColorBlue
Ribs/Teeth/Angle80
CordAramid
Height (In)0.3346
Height (mm)8.5
MaterialPolyurethane
Nominal Outside Length (In)44.0945
Nominal Outside Length (mm)1120
CategoryIndustrial Belts
Country of originTW
Height8.5
Length1120
ManufacturerBando

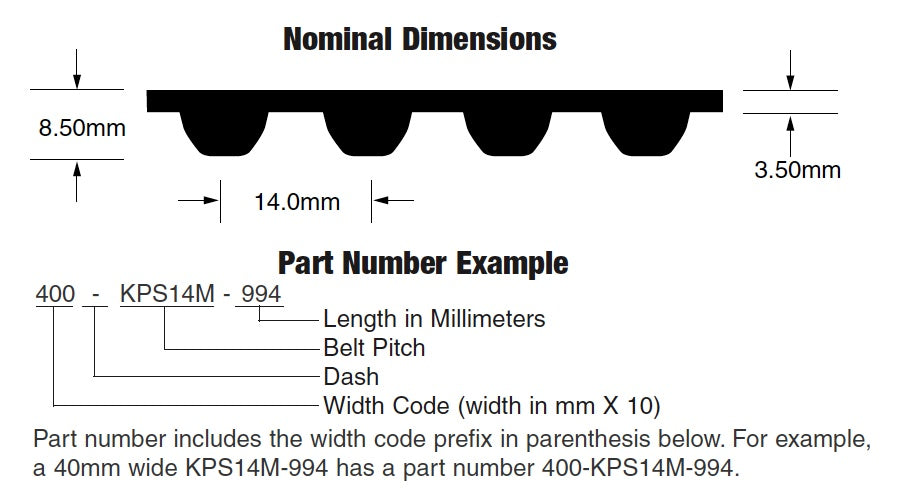

Mpn600-KPS14M-1120
No of ribs80
SubcategoryTiming Belts
TypeSynchro-Link KPS Polyurethane (Metric)
Width60
