Bando 800-S14M-1400 C-X Ceptor TB

Product Description

Bando - 800-S14M-1400 C-X

• High-torque power transmission : Ceptor-X provides higher torque and higher power transmission than normal trapezoidal teeth due to the mesh theory of the unique curvilinear teeth and has achieved high torque and high power transmission by using high-rigidity and high-elasticity components. Although it varies depending on the field, it has a 2.7-fold or more transmission capacity compared to normal STS.

• Low noise : As the belt width can be narrower than the previous specification, the noise can be reduced.

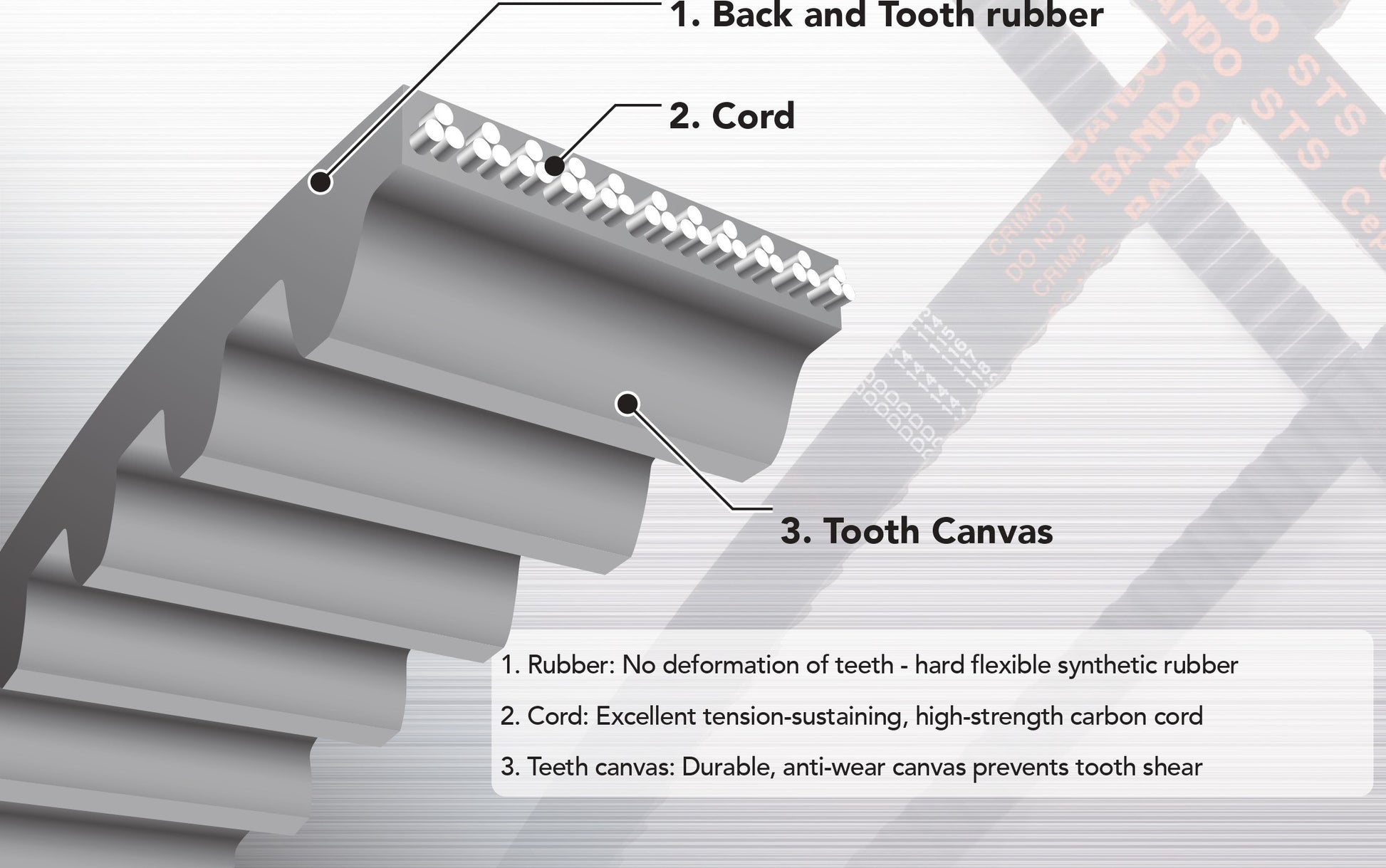

• Rubber : Adoption of a synthetic rubber with little tooth deformation, high hardness, and high elasticity

• Cord : Adoption of ultra-high-elasticity cord with excellent tension maintenance

• Facing fabric : Adoption of facing fabric with excellent tooth chipping resistance and abrasion resistance

• Miniaturized : The high transmission capacity allows a narrower width and a smaller pulley diameter than the previous specifications, allowing compact designs.

• Pulleys used : Ceptor-X can be used with the standard STS pulleys and TL STS pulleys.
